Components and Components Location: Components

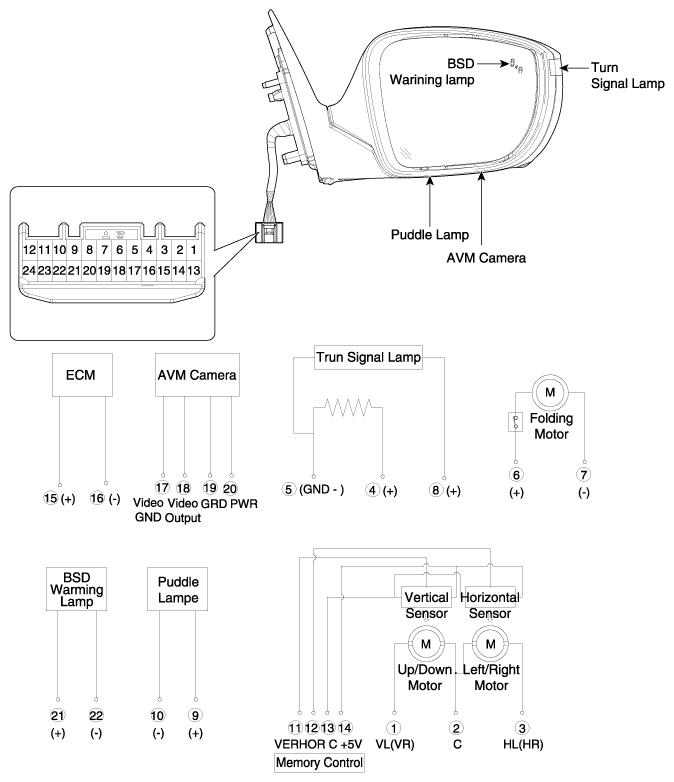

Fig 1: Blind Spot Detection Indicator And Connector Terminal Identification
G10387697Courtesy of HYUNDAI MOTOR AMERICA
