Camera Module Connector End View (M14)

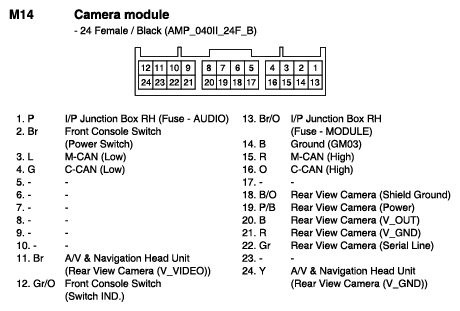

Fig 1: Camera Module Connector End View (M14)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
