Circuit Diagram

(M/T)

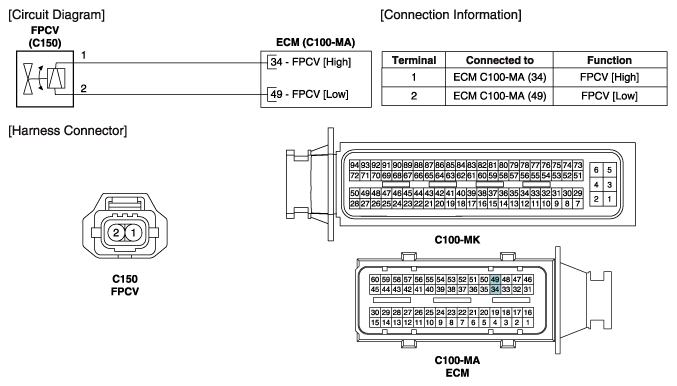

Fig 1: FPCV Circuit Diagram (M/T)
G10544382Courtesy of HYUNDAI MOTOR AMERICA

(A/T)

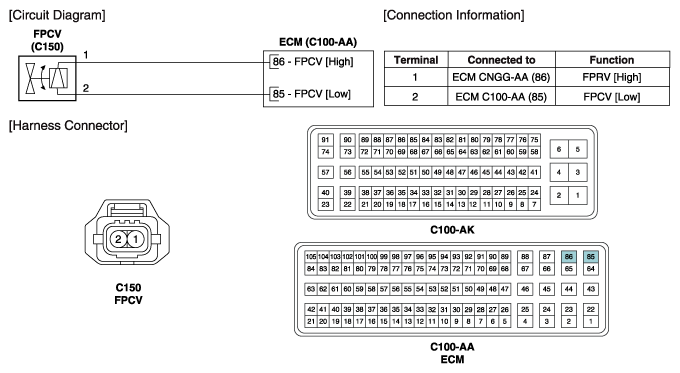

Fig 2: FPCV Circuit Diagram (A/T)
G10544383Courtesy of HYUNDAI MOTOR AMERICA
