Components and Components Location: Components

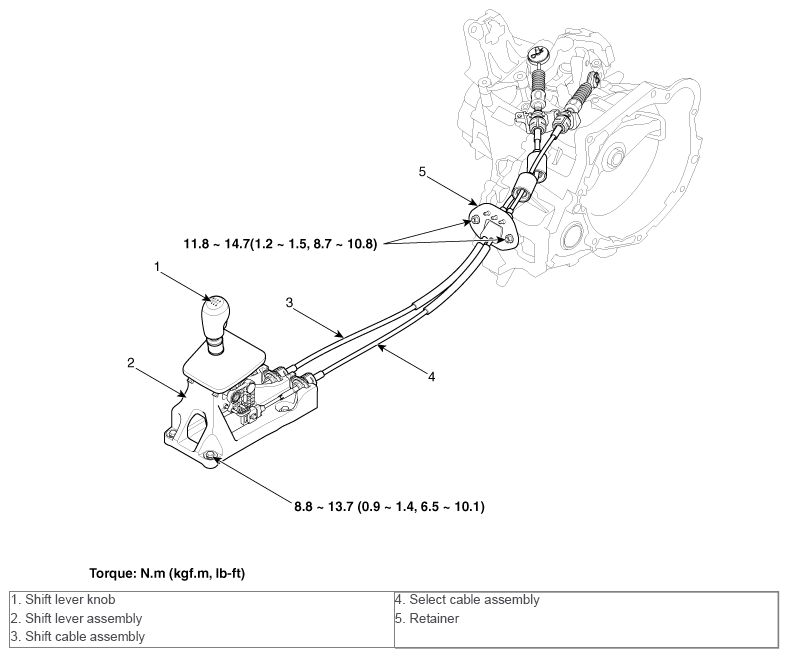

Fig 1: Identifying Manual Transaxle Control System Components With Torque Specifications
G10544513Courtesy of HYUNDAI MOTOR AMERICA
