Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views (Control Harness)
>>
Connector End Views
>>
PCM Connector End View (CLG-B)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
PCM Connector End View (CLG-B)

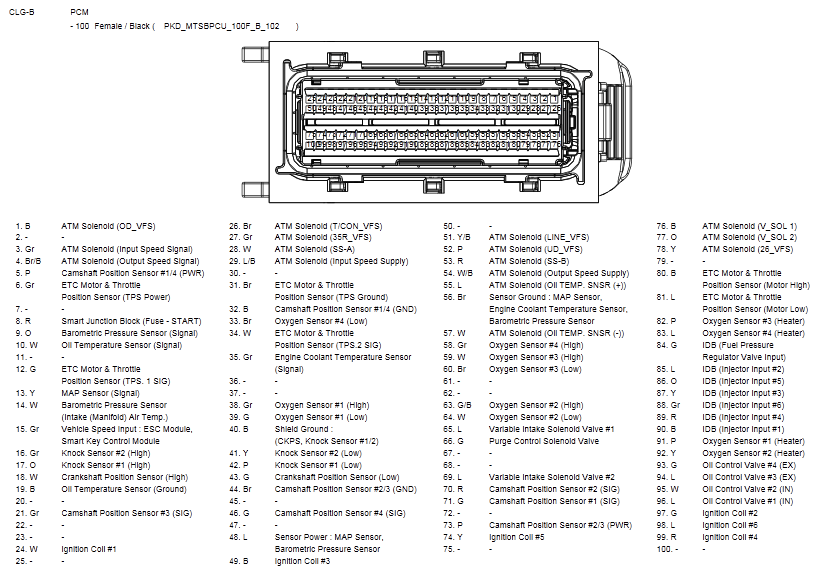

Fig 1: PCM Connector End View (CLG-B)
Courtesy of HYUNDAI MOTOR AMERICA
