Components And Components Location: Components

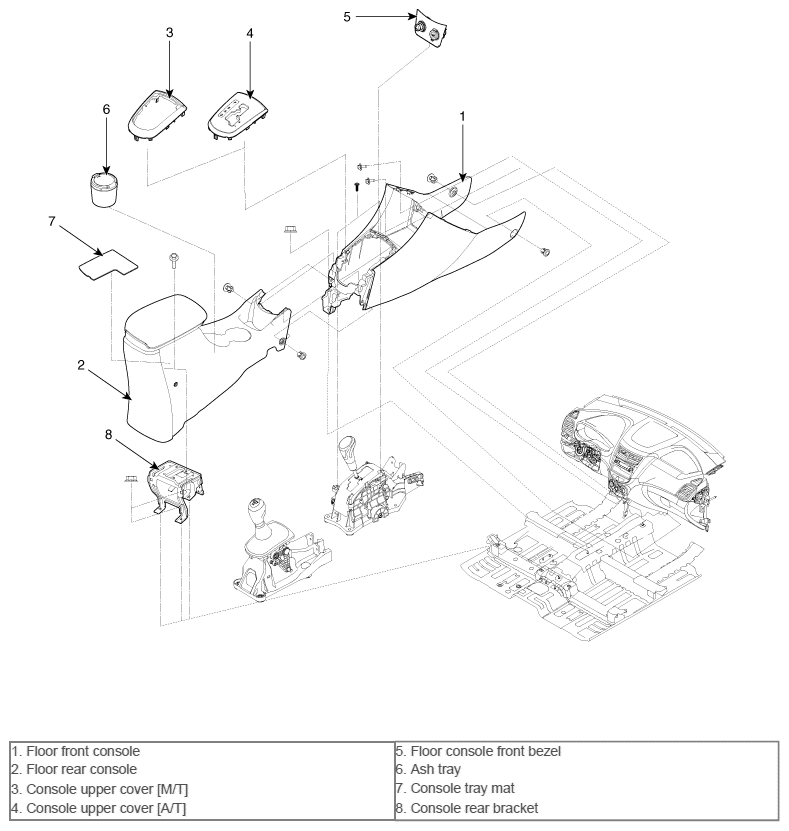

Fig 1: Console Component Locations
G10363211Courtesy of HYUNDAI MOTOR AMERICA
