Components Location: Notes

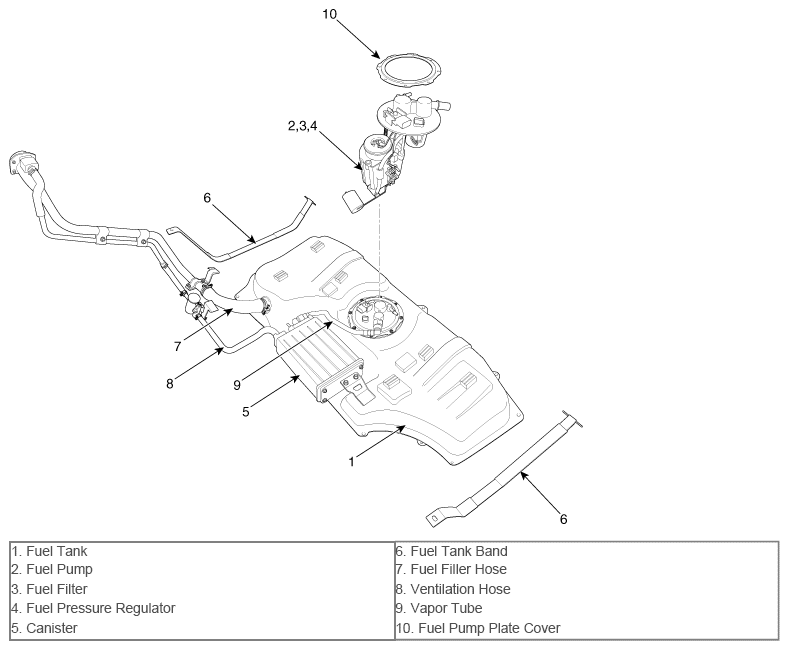

Fig 1: Fuel Delivery System Components (1 Of 2)
G10362504Courtesy of HYUNDAI MOTOR AMERICA
