Circuit Diagram: (M/T)

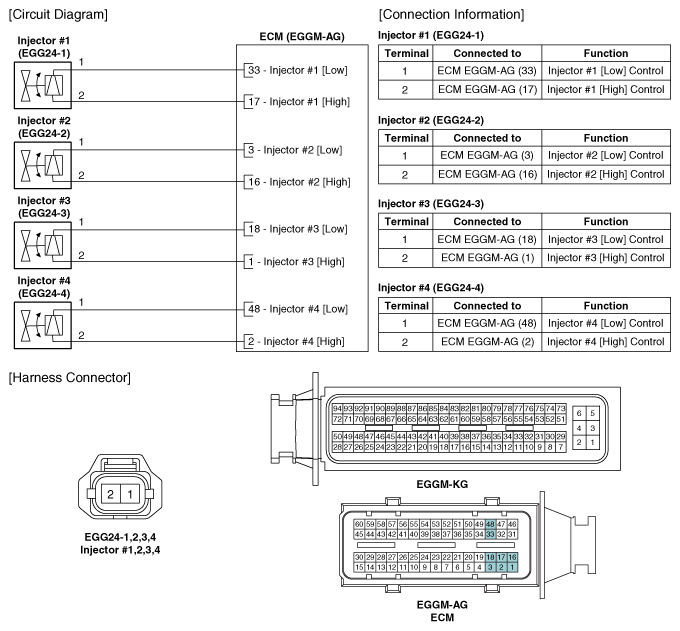

Fig 1: Injector Schematic Diagrams And Connector Terminal identification
G10362467Courtesy of HYUNDAI MOTOR AMERICA
