Circuit Diagram: (A/T)

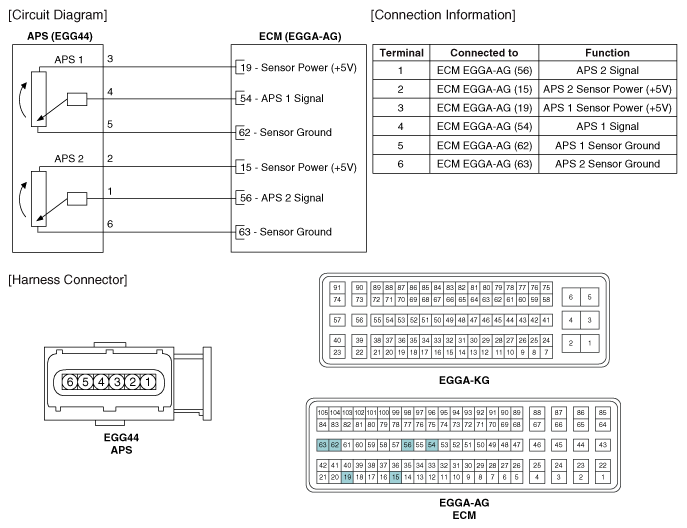

Fig 1: Accelerator Position Sensor Circuit Diagram And Connector Terminal Identification
G10362458Courtesy of HYUNDAI MOTOR AMERICA
