Components and Components Location: Components

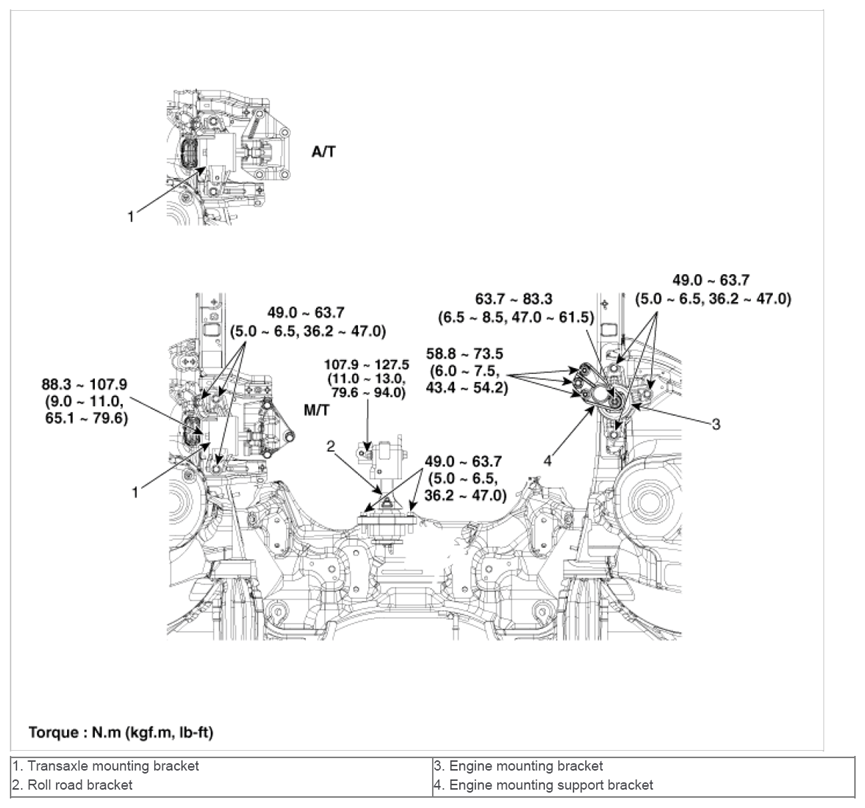

Fig 1: Engine Mounting Components With Torque Specifications
G09149986Courtesy of HYUNDAI MOTOR AMERICA
