Circuit Diagram: (A/T)

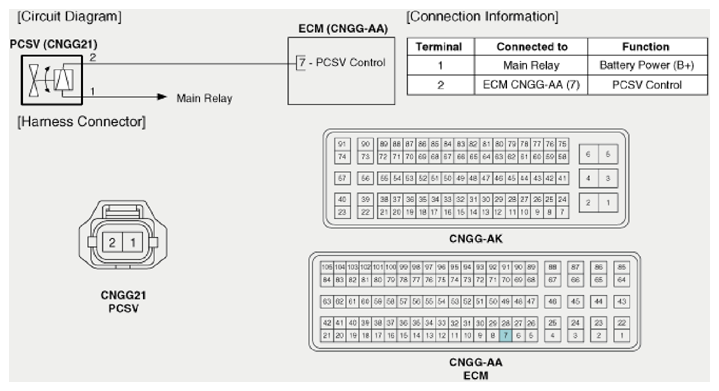

Fig 1: Purge Control Solenoid Valve Circuit Diagram (A/T)
G09151126Courtesy of HYUNDAI MOTOR AMERICA
