Repair Procedures - Non-Turbo: Inspection

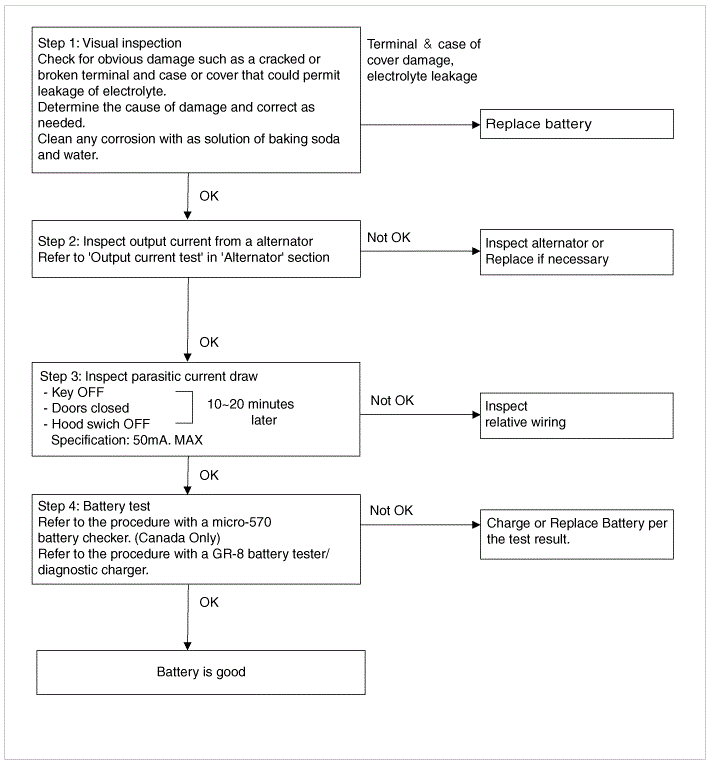

Fig 1: Identifying Battery Diagnostic Flow Chart
G00547651Courtesy of HYUNDAI MOTOR AMERICA
