Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

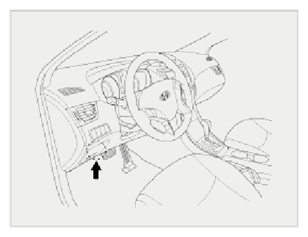

Fig 1: Locating Data Link Connector (16 Pins)
Courtesy of HYUNDAI MOTOR AMERICA

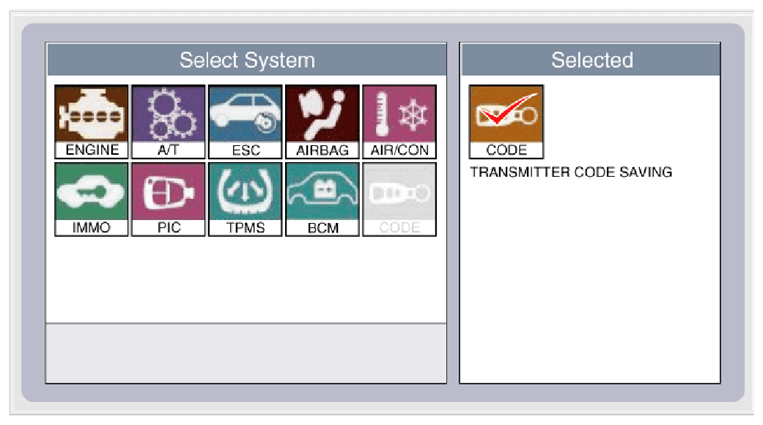

Select the vehicle model and then select "CODE SAVING"

Fig 2: Display - Transmitter Code Saving Selection Screen
Courtesy of HYUNDAI MOTOR AMERICA

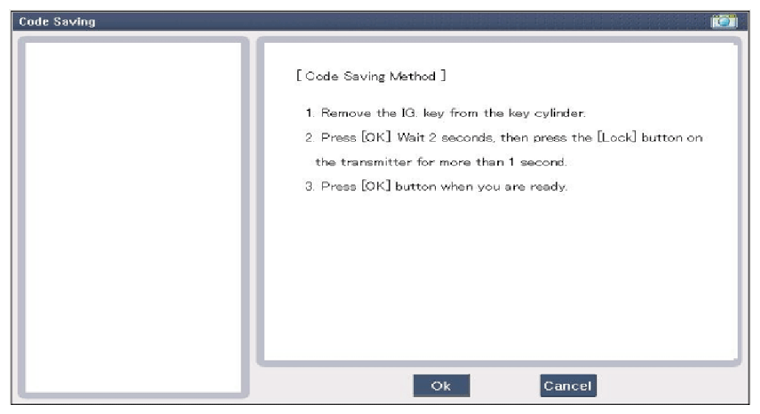

After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as below.

Fig 3: Display - Transmitter Code Saving Selection Screen
Courtesy of HYUNDAI MOTOR AMERICA
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

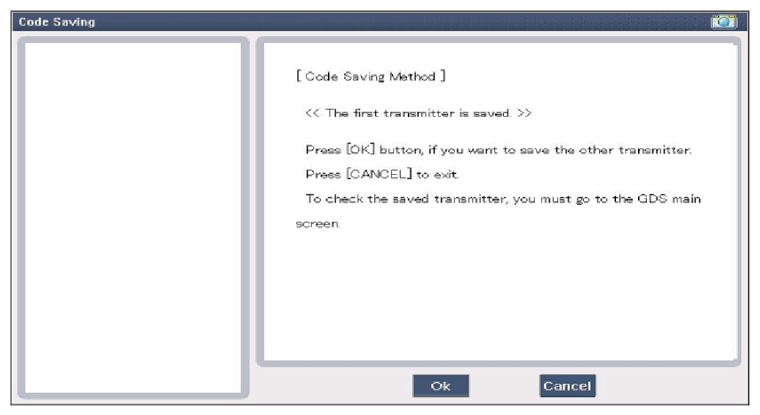

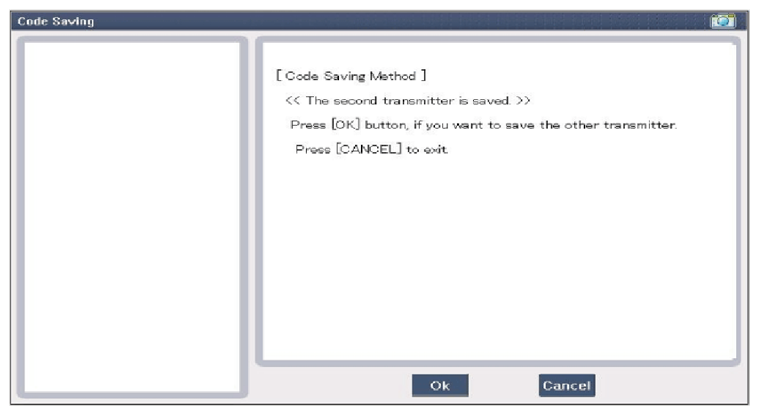

Fig 4: Display - Transmitter Code Saving Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA

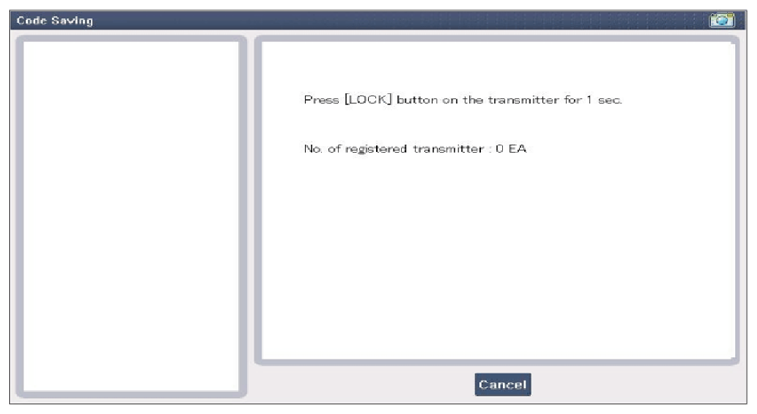

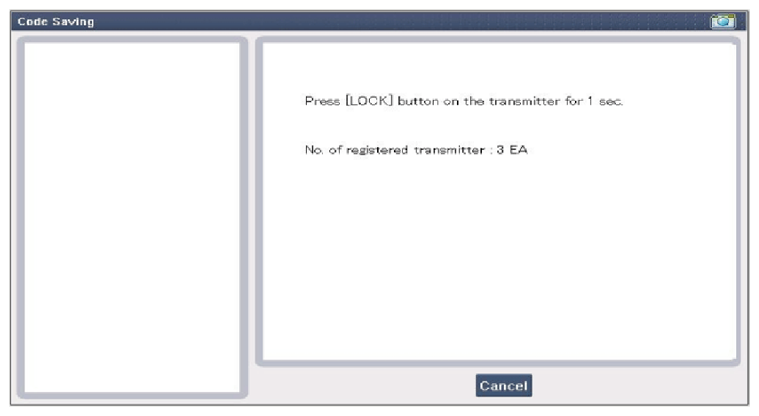

Fig 5: Display - Transmitter Code Saving Selection Screen
Courtesy of HYUNDAI MOTOR AMERICA

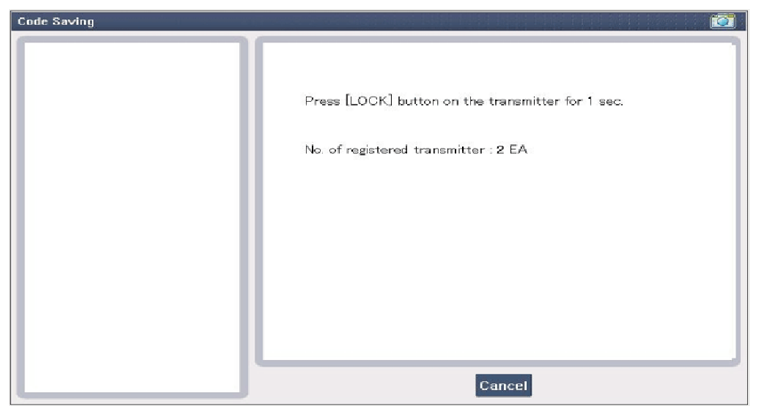

Fig 6: Display - Transmitter Code Saving Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA

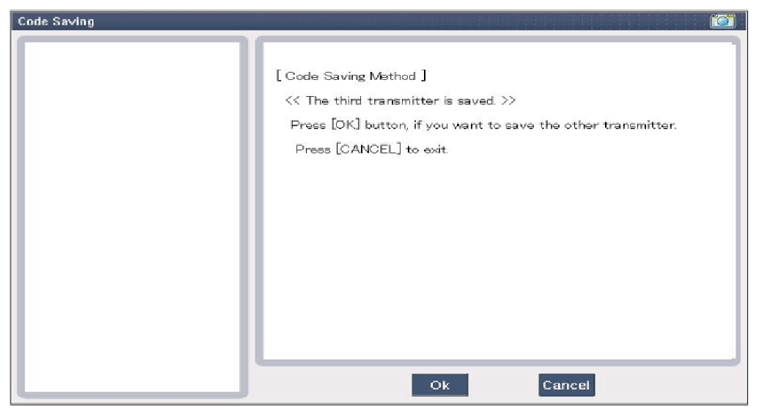

Fig 7: Display - Transmitter Code Saving Selection Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 8: Display - Transmitter Code Saving Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 9: Display - Transmitter Code Saving Selection Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 10: Display - Transmitter Code Saving Confirmation Screen
Courtesy of HYUNDAI MOTOR AMERICA

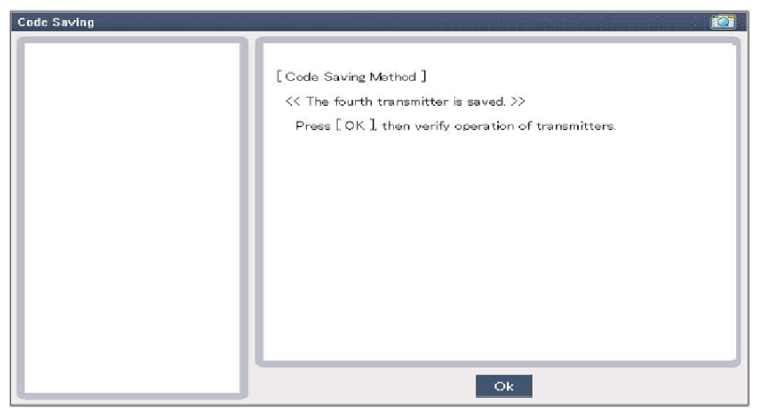

Fig 11: Display - Transmitter Code Saving Selection Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 12: Display - Transmitter Code Saving Selection Screen
Courtesy of HYUNDAI MOTOR AMERICA
