Engine Control System - 2.4L
>>
Crankshaft Position Sensor (CKPS)
>>
Troubleshooting
>>
Signal Waveform
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform

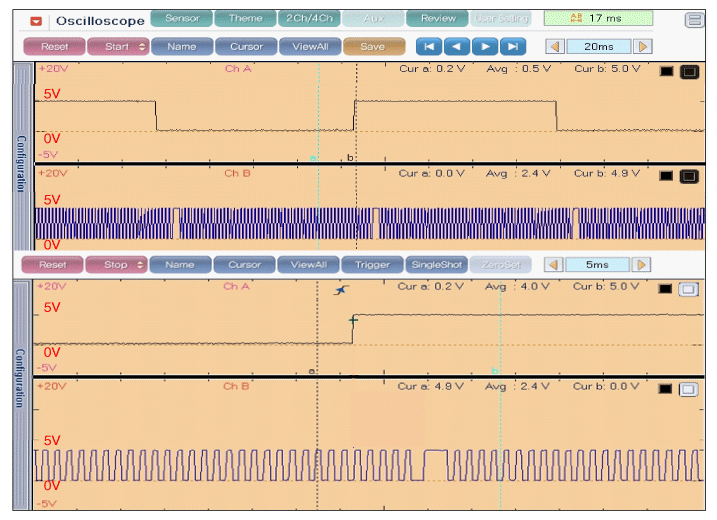

Fig 1: Display - Crankshaft Position Sensor Signal Waveform Screen
Courtesy of HYUNDAI MOTOR AMERICA
