Tucson SE, FWD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
Body Control Module (BCM)
>>
Body Control Module (BCM)
>>
Components and Components Location
>>
Components
>>
Connector Pin Information
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Connector Pin Information

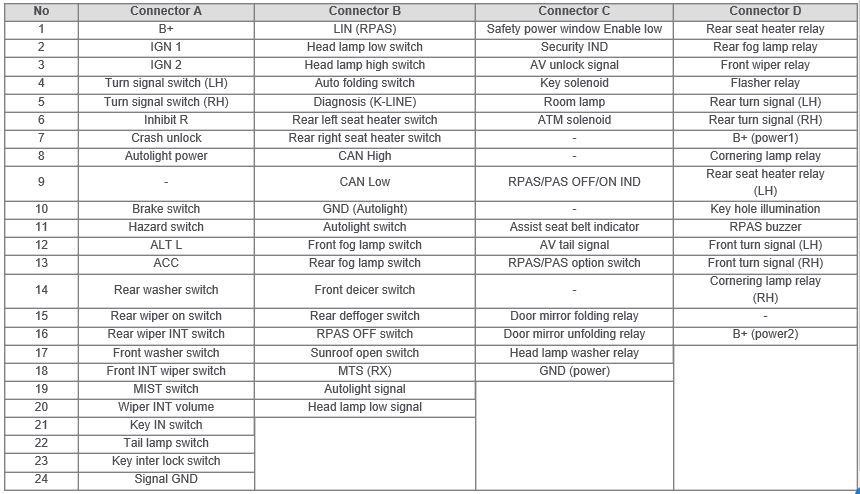

Fig 1: BCM Connector Pin Information
