Automatic Transaxle System - 2.4L
>>
Automatic Transaxle
>>
Components and Components Location
>>
Components Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components Location

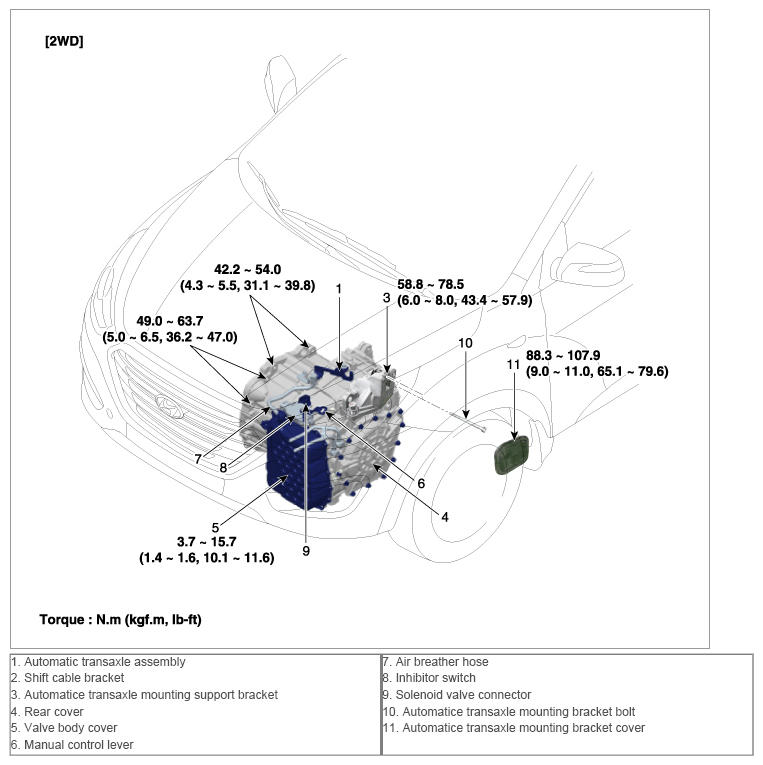

Fig 1: Automatic Transaxle System Components Location With Torque Specifications - 2.4L (2WD)
Courtesy of HYUNDAI MOTOR AMERICA

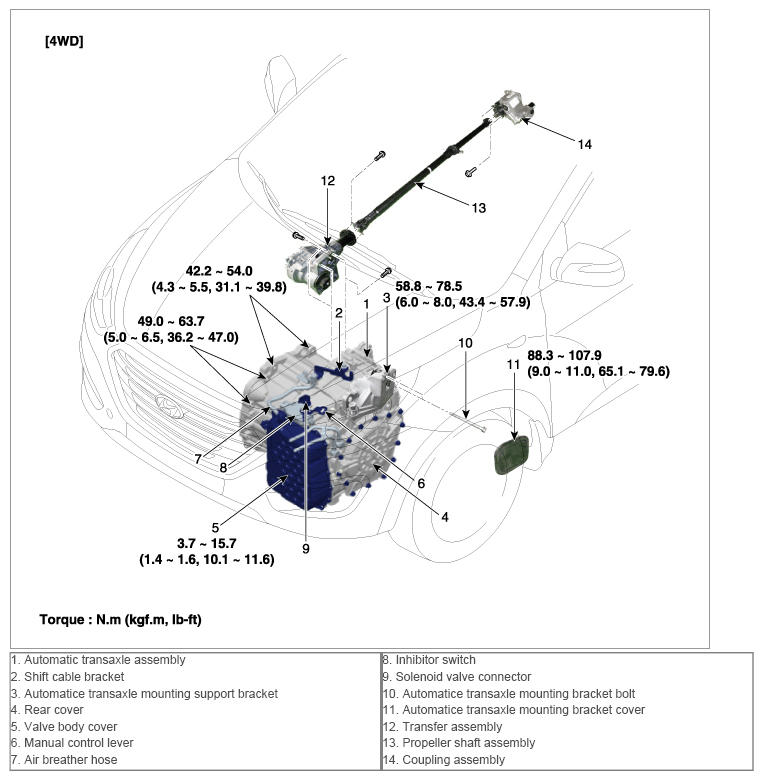

Fig 2: Automatic Transaxle System Components Location With Torque Specifications - 2.4L (4WD)
Courtesy of HYUNDAI MOTOR AMERICA
