Hyundai
>>
2014
>>
Tucson GLS, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle Control System - 2.0L
>>
Input Speed Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

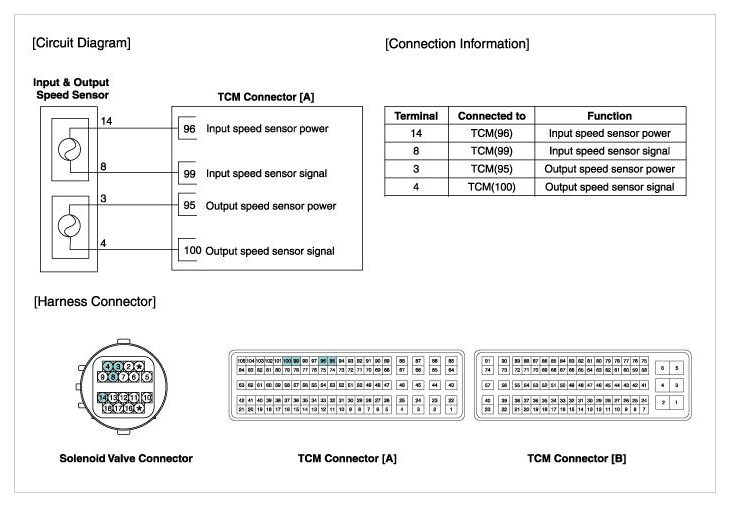

Fig 1: Input/Output Speed Sensor Schematic Diagram
Courtesy of HYUNDAI MOTOR AMERICA
