Removal and Installation

  1. Remove the engine cover (A).

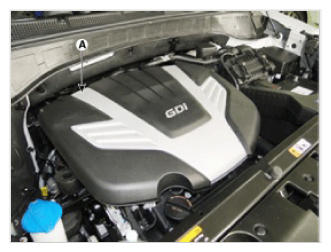

    Fig 1: Identifying Engine Cover
    G09267165Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Lift up the lower end of engine cover, then left and right alternately.
    • When installing, confirm that the mounting rubber insulators has been installed.
  2. Install in the reverse order of removal.
