Driver Power Window Switch

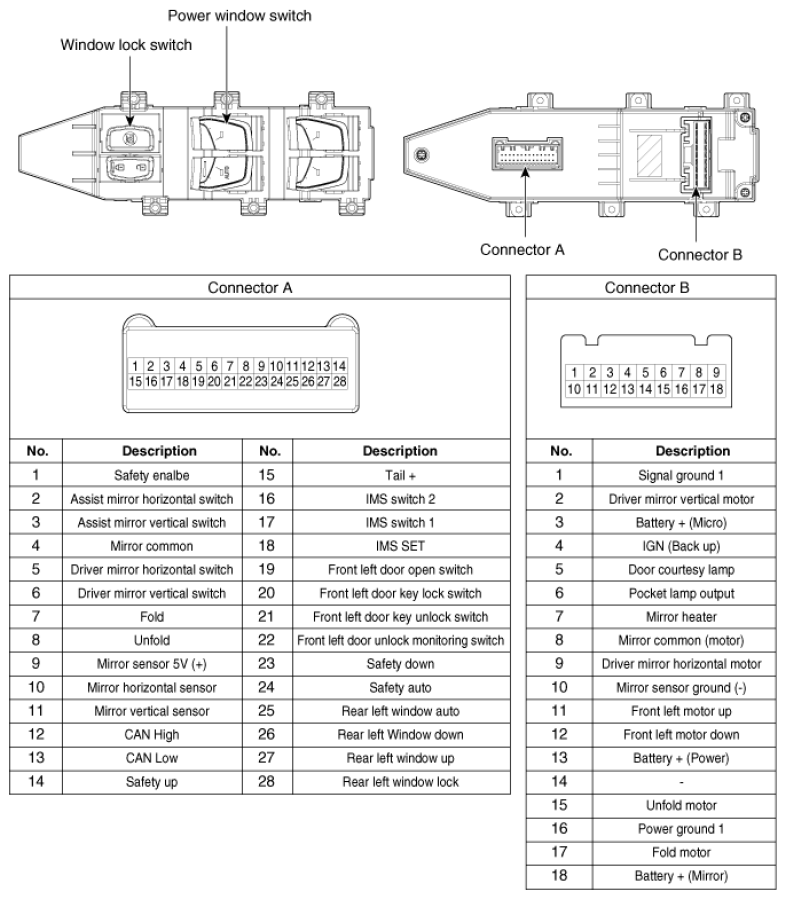

Fig 1: Identifying Driver Power Window Switch And Connector
G09268722Courtesy of HYUNDAI MOTOR AMERICA
