Assist Power Window Switch

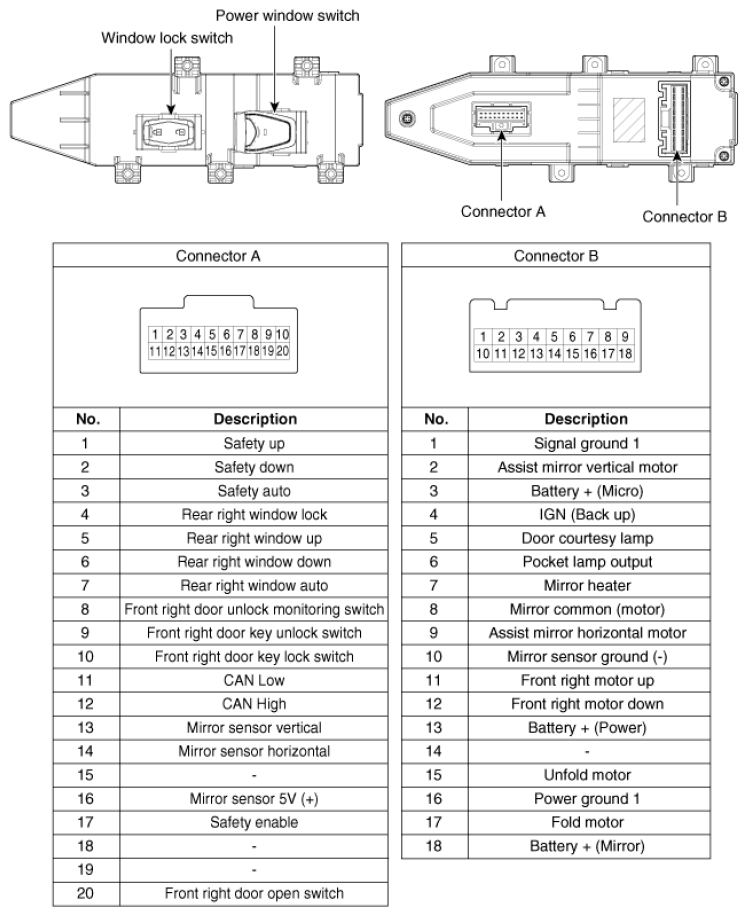

Fig 1: Identifying Assist Power Window Switch And Connector
G09268723Courtesy of HYUNDAI MOTOR AMERICA
