DTC P0196: Engine Oil Temperature Sensor-Range/Performance
>>
Specification
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

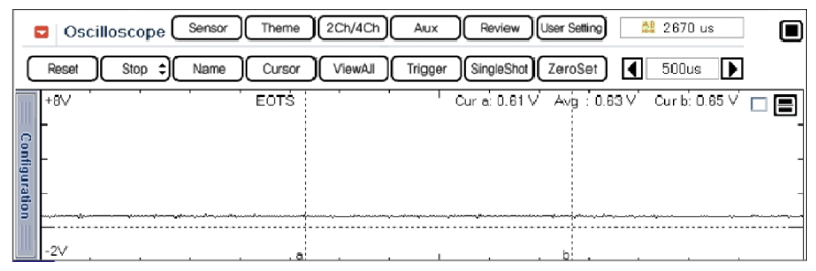

Fig 1: Display - Normal Waveform Of EOTS At 76°C (168.4°F)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Display - Normal Data Of IATS, ECTS & EOTS At IG "ON"
Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Display - Normal Data Of IATS, ECTS & EOTS Engine At Operating Temperature
Courtesy of HYUNDAI MOTOR AMERICA
