Assist Power Window Switch

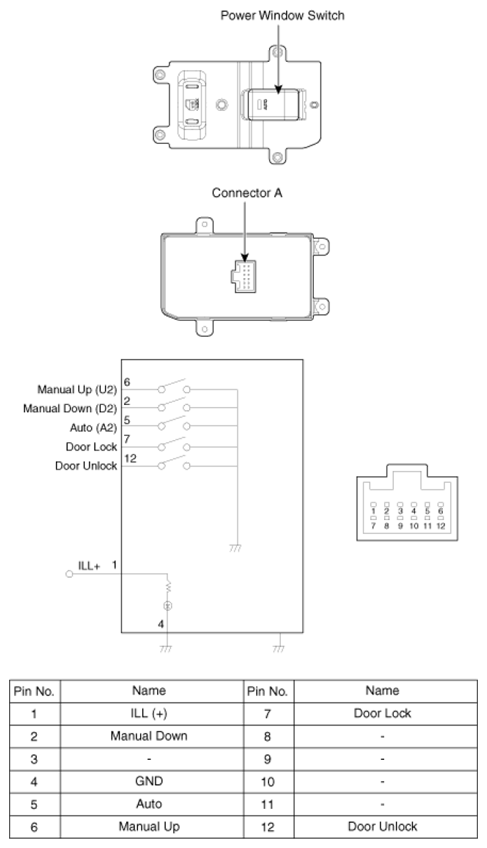

Fig 1: Identifying Assist Power Window Switch, Connector & Terminals
G06513838Courtesy of HYUNDAI MOTOR CO.
