Special Tools

WARNING: This page is about a different car, the 2014 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.
Tool Tool number and name Supersession Application

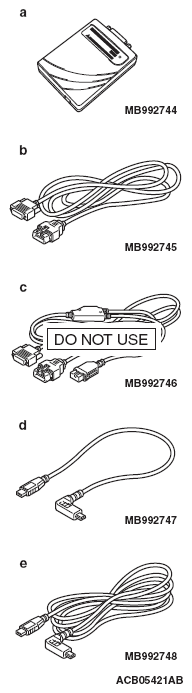

G09633087
  1. MB992744
  2. MB992745
  3. MB992746
  4. MB992747
  5. MB992748

  1. Vehicle communication interface-Lite (V.C.I.-Lite)
  2. V.C.I.-Lite main harness A (for vehicles with CAN communication)
  3. V.C.I.-Lite main harness B (for vehicles without CAN communication)
  4. V.C.I.-Lite USB cable short
  5. V.C.I.-Lite USB cable long
 - CAN bus diagnostics

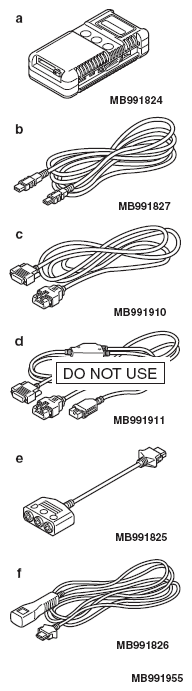

G09633088
 MB991955
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991825
  6. MB991826

M.U.T.-III sub-assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (for vehicles with CAN communication)
  4. M.U.T.-III main harness B (for vehicles without CAN communication)
  5. Measuring adapter harness
  6. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use the M.U.T.-III main harness A to send simulated vehicle speed. If you connect the M.U.T.-III main harness B instead, the CAN communication does not function correctly.
CAN bus diagnostics
G09633089
 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Wiring harness set
  1. Check harness
  2. LED harness
  3. LED harness adapter
  4. Probe
 General service tools Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
  1. Connector pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G09633090
 MB992006 Extra fine probe - Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
G09633091
 MB991709 Wiring harness set - Measurement of voltage and resistance at the ASC-ECU
