Components Location

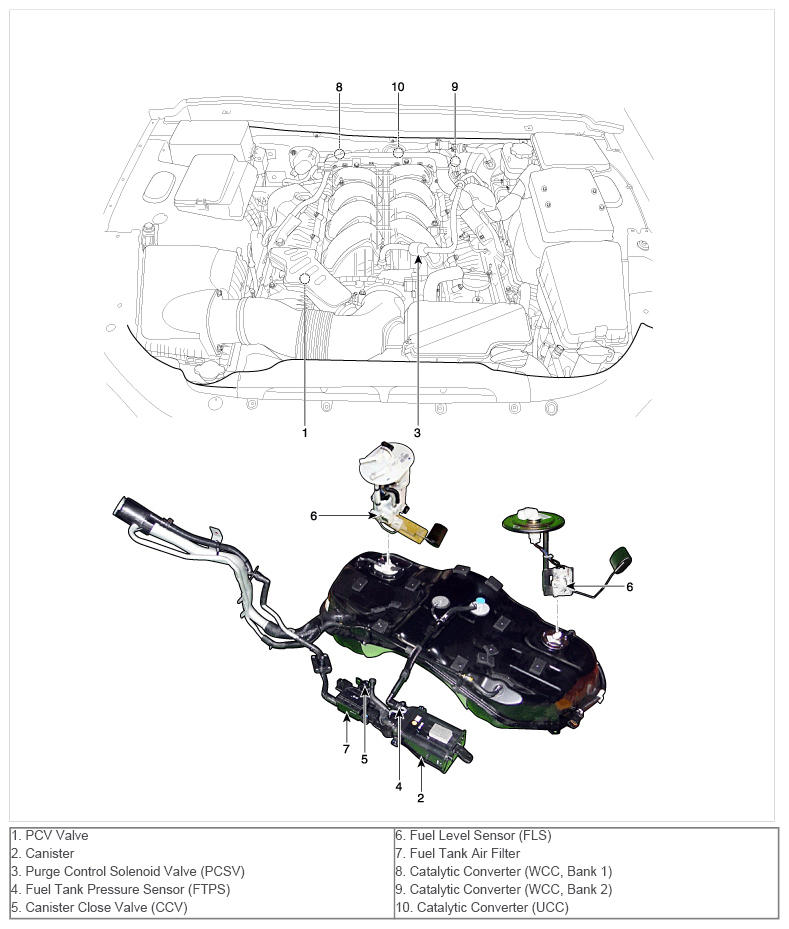

Fig 1: Emission Control System Components Location (1 Of 2)
G09789278Courtesy of HYUNDAI MOTOR AMERICA

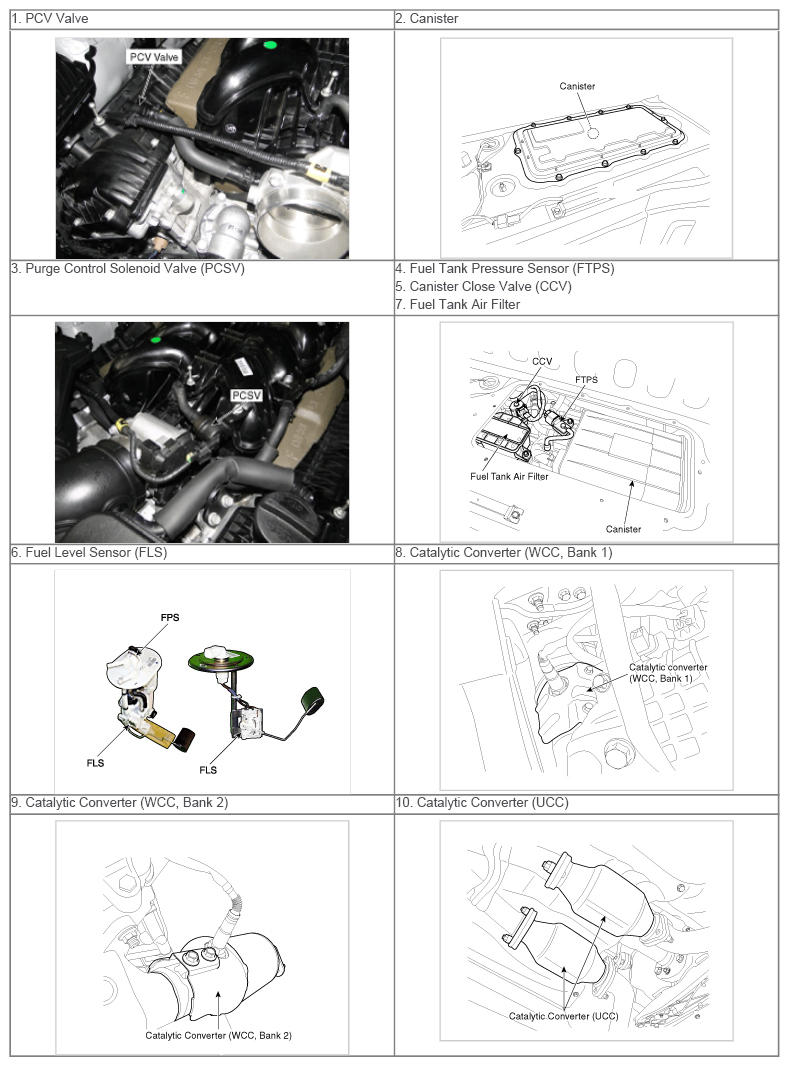

Fig 2: Emission Control System Components Location (2 Of 2)
G09789279Courtesy of HYUNDAI MOTOR AMERICA
