Circuit Diagram (1)

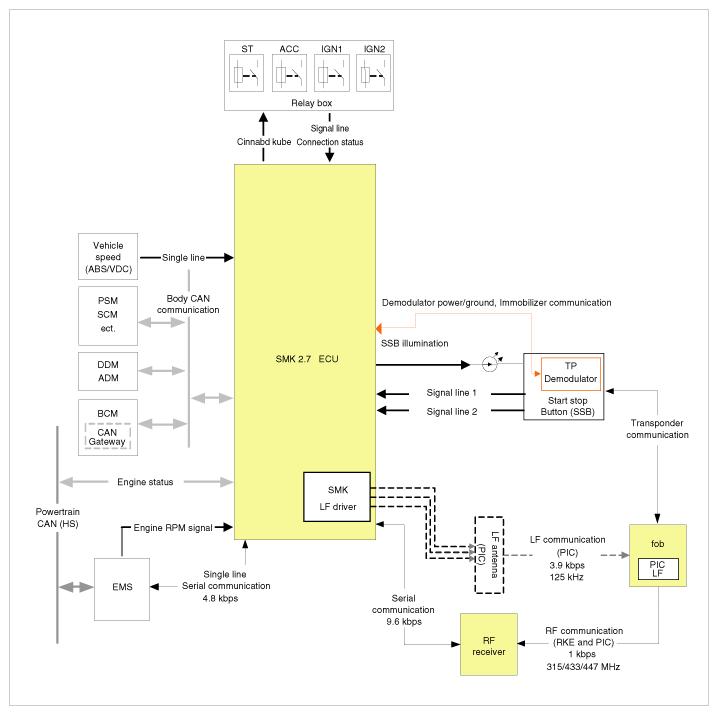

Fig 1: SMK - Circuit Diagram (1 Of 2)

G09791480

Courtesy of HYUNDAI MOTOR AMERICA
