Signal Waveform & Data

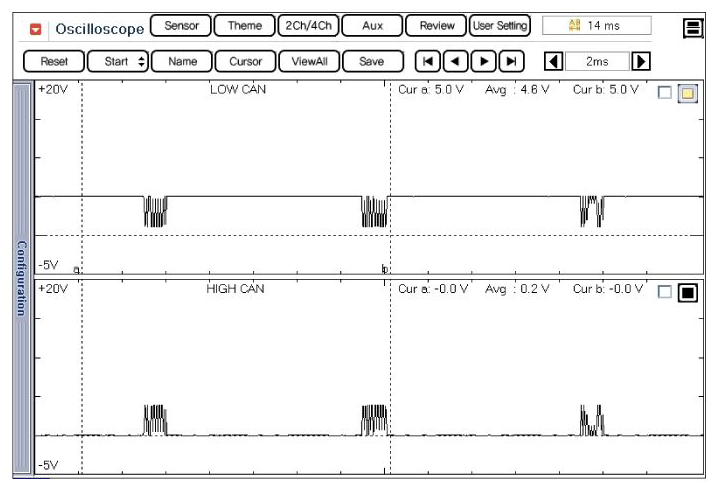

Fig 1: Display - Normal Waveform Of Body CAN High And Low
G09792578Courtesy of HYUNDAI MOTOR AMERICA

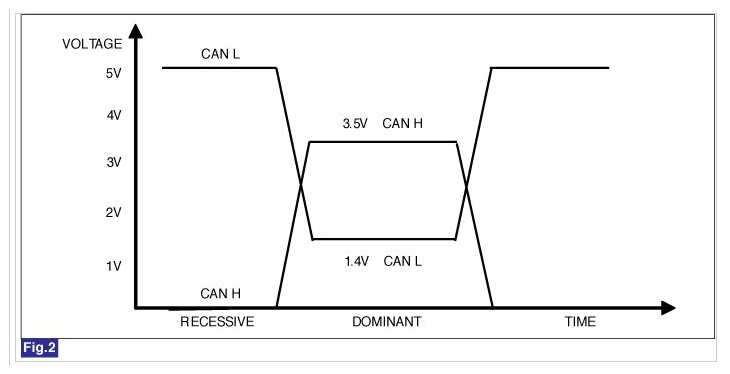

Fig 2: Display - Normal Voltage Level Of Body CAN
G09792579Courtesy of HYUNDAI MOTOR AMERICA
