Joint Connector End View (JS11)

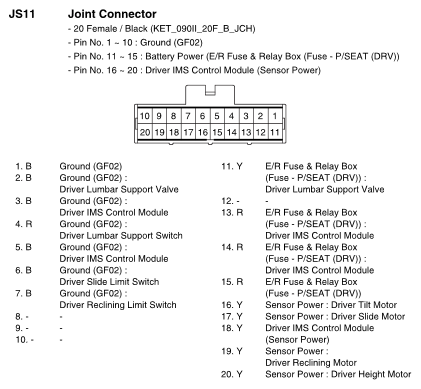

Fig 1: Joint Connector End View (JS11)

G10734948

Courtesy of HYUNDAI MOTOR AMERICA
