Circuit Diagram (1)

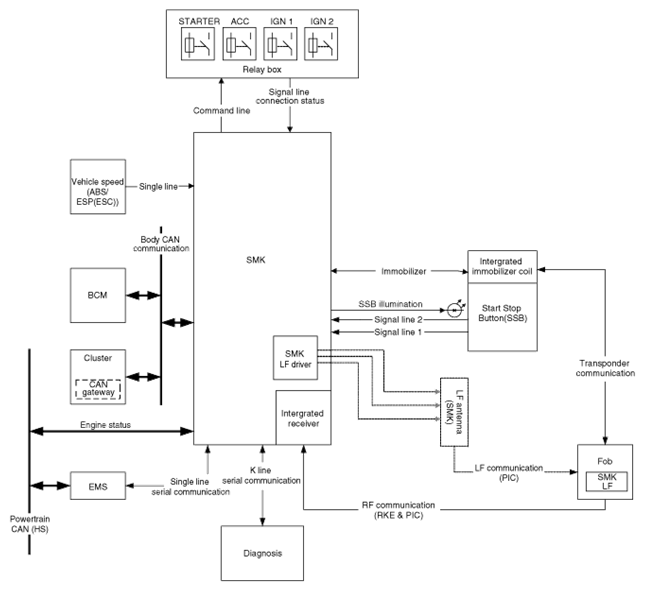

Fig 1: Button Engine Start System Diagrams
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
