Components and Components Location: Components

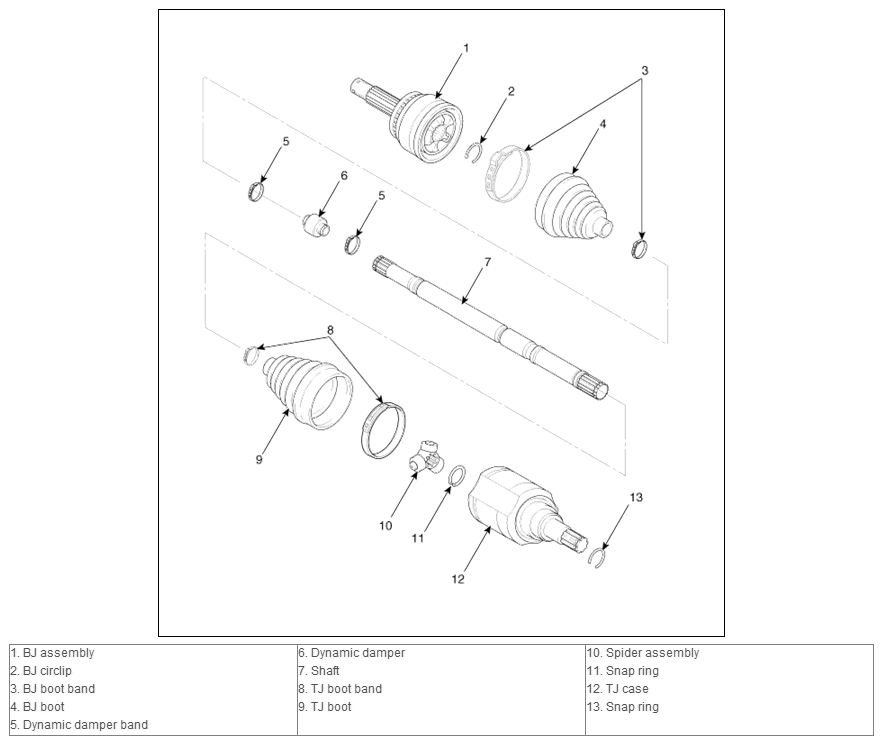

Fig 1: RH Driveshaft Components
G10242794Courtesy of HYUNDAI MOTOR AMERICA

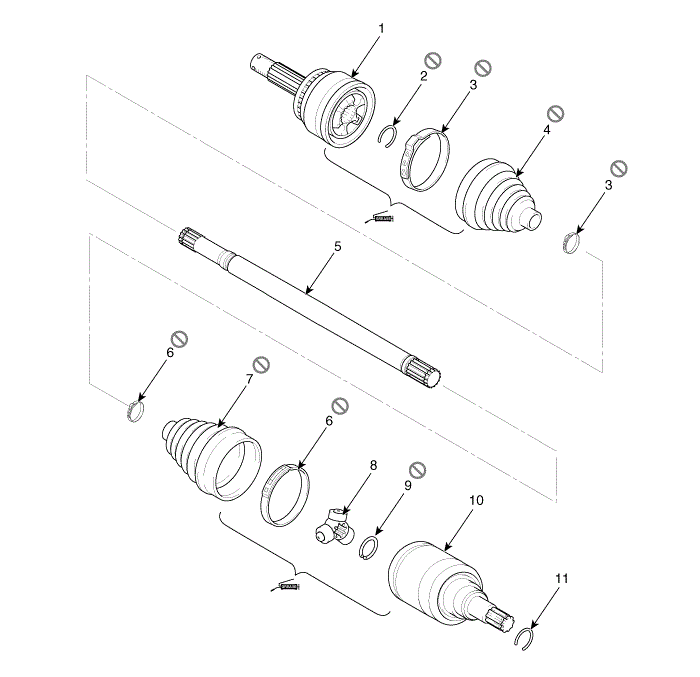

Fig 2: LH Driveshaft Components
G00558212Courtesy of HYUNDAI MOTOR AMERICA
