Repair procedures: Installation

Installation is the reverse of removal.
NOTE:
- When installing, apply the ATF oil or white Vaseline to the O-ring (A) not to be damaged.

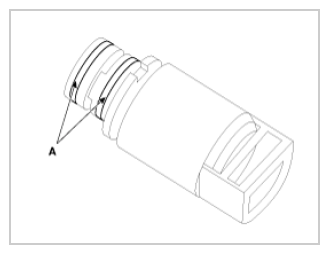

  Fig 1: Identifying Solenoid Valve O-Ring
  Courtesy of HYUNDAI MOTOR AMERICA
- The gasket of the valve body gasket (A) use new one.

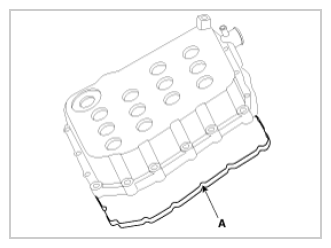

  Fig 2: Identifying Valve Body Gasket
  Courtesy of HYUNDAI MOTOR AMERICA
- Adding automatic transaxle fluid.
  (Refer to "FLUID ")
