Components and Components Location: Components

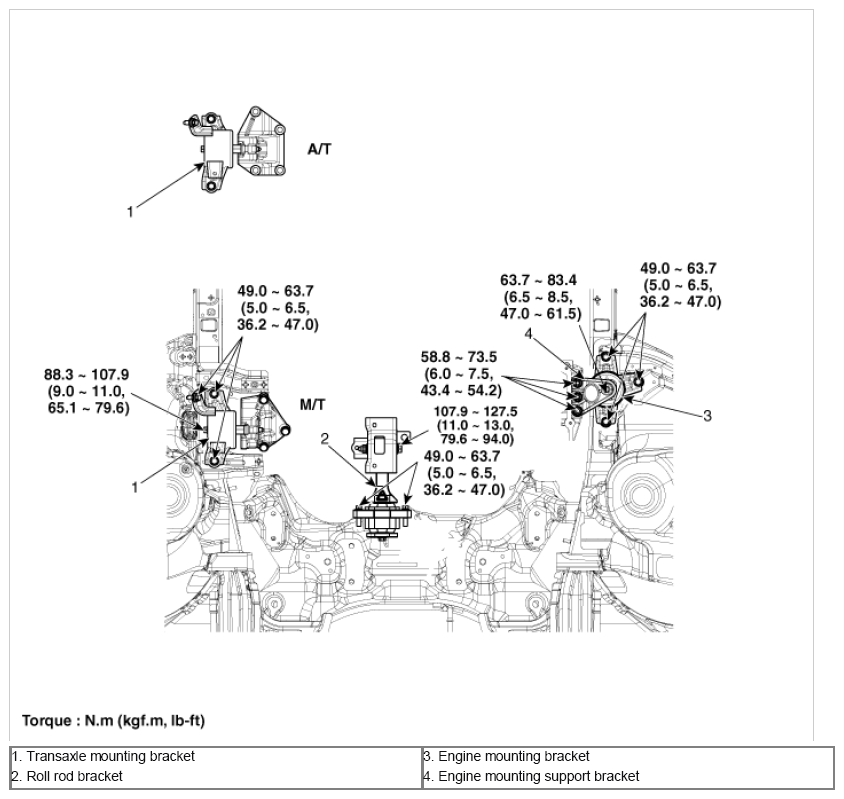

Fig 1: Engine Mounting Replacement Components With Torque Specifications -- 2013

Courtesy of HYUNDAI MOTOR AMERICA

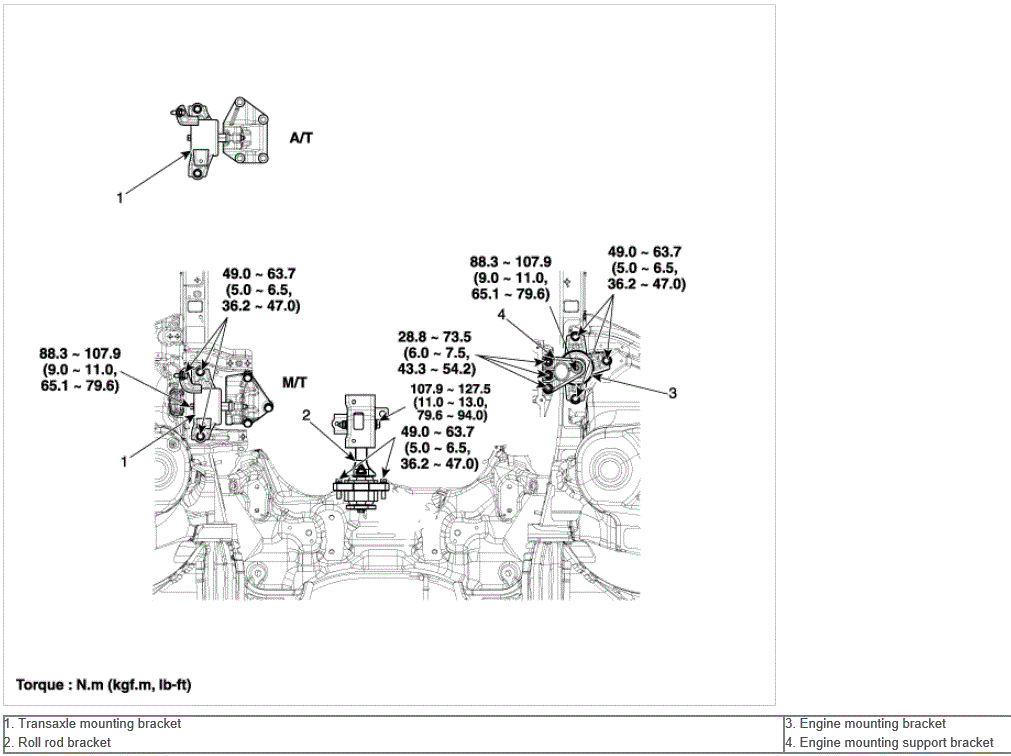

Fig 2: Engine Mounting Replacement Components With Torque Specifications -- 2014

Courtesy of HYUNDAI MOTOR AMERICA
