Circuit Diagram: (A/T)

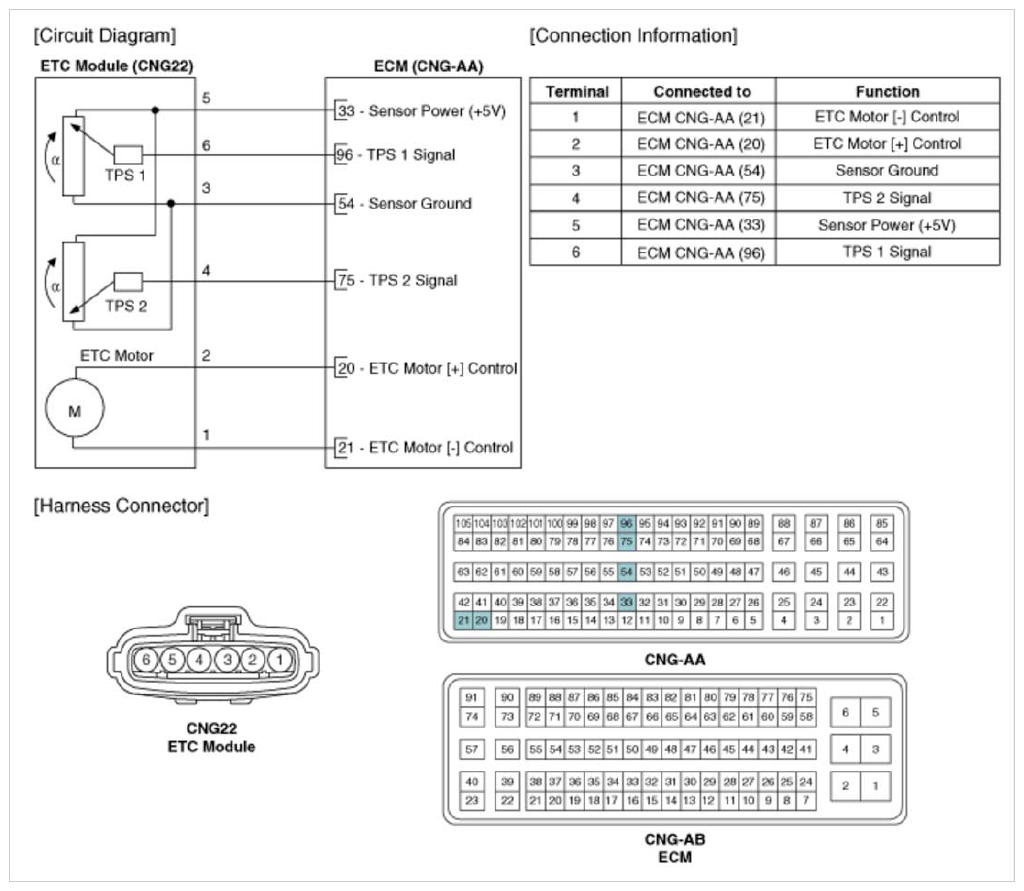

Fig 1: ETC Module - CNG22 Schematic Diagrams (A/T)
G09885883Courtesy of HYUNDAI MOTOR AMERICA
