Components And Components Location: Components

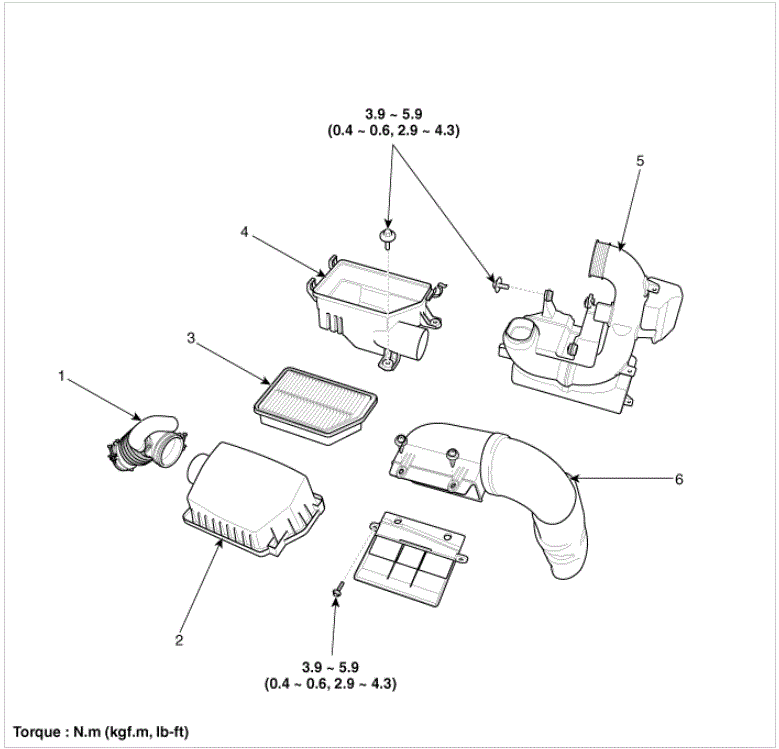

Fig 1: Air Cleaner Replacement Components With Torque Specifications
G00554152Courtesy of HYUNDAI MOTOR AMERICA
1. Air intake hose 5. Resonator
2. Air cleaner cover 6. Air duct
3. Air cleaner filter 7. Air intake shield
4. Air cleaner body
