Neutralization Status Check: Notes

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IGN ON, select the "Neutralization mode".

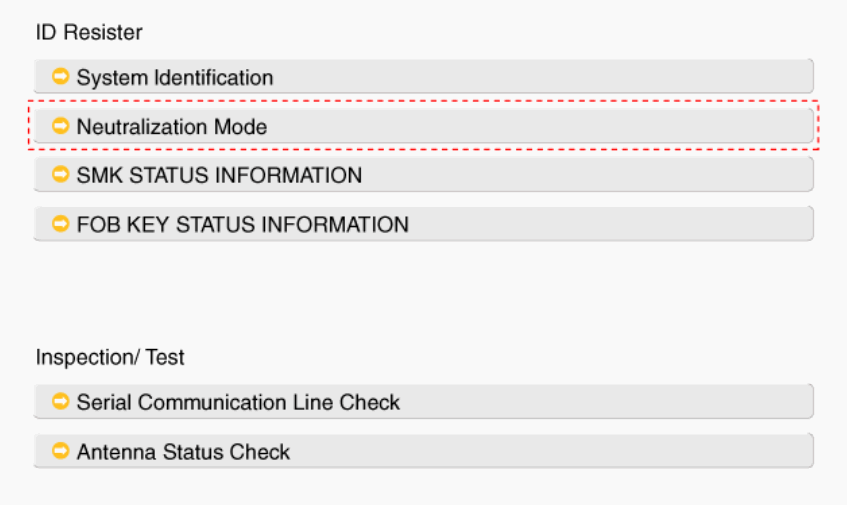

    Fig 1: Display - Neutralization Mode
    G00553288Courtesy of HYUNDAI MOTOR AMERICA

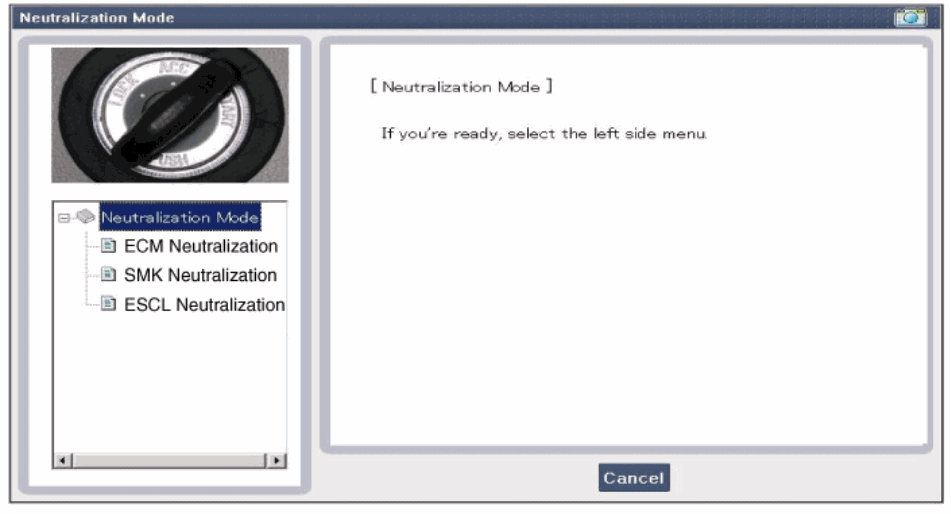

    Fig 2: Display - Neutralization Mode
    G00553289Courtesy of HYUNDAI MOTOR AMERICA

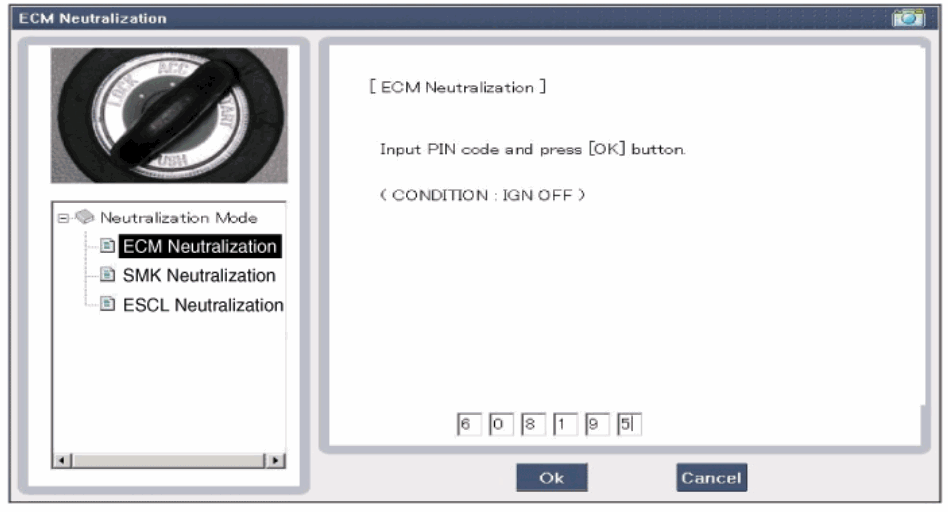

    Fig 3: Display - ECM Neutralization
    G00553290Courtesy of HYUNDAI MOTOR AMERICA

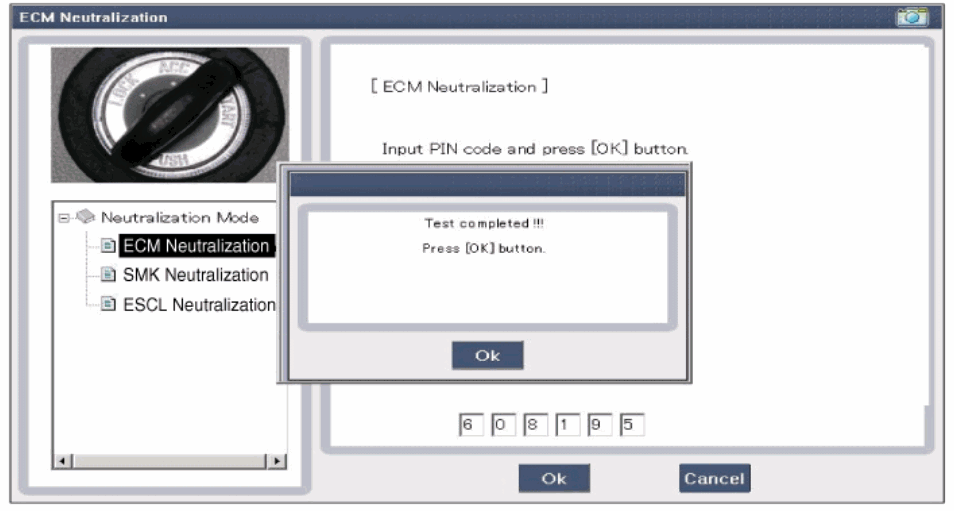

    Fig 4: Display - ECM Neutralization
    G00553291Courtesy of HYUNDAI MOTOR AMERICA

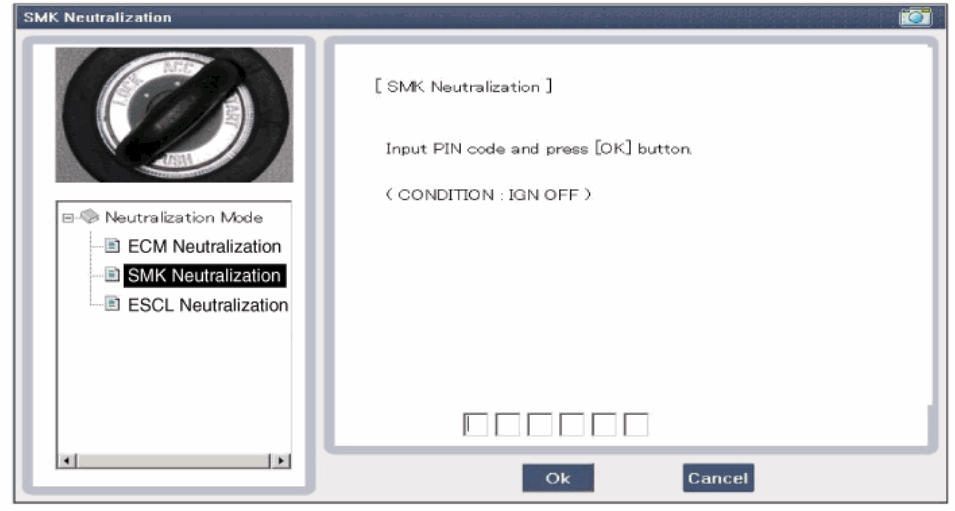

    Fig 5: Display - SMK Neutralization
    G00553292Courtesy of HYUNDAI MOTOR AMERICA

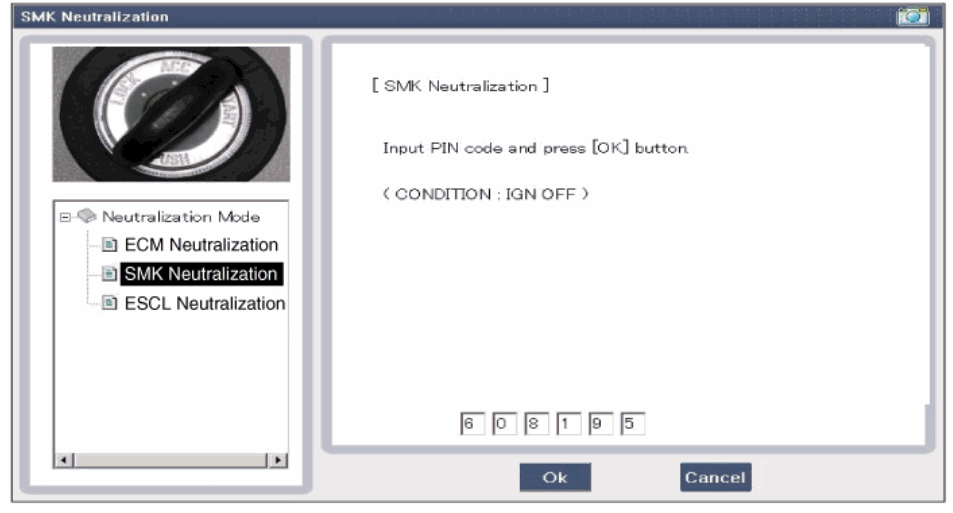

    Fig 6: Display - SMK Neutralization
    G00553293Courtesy of HYUNDAI MOTOR AMERICA

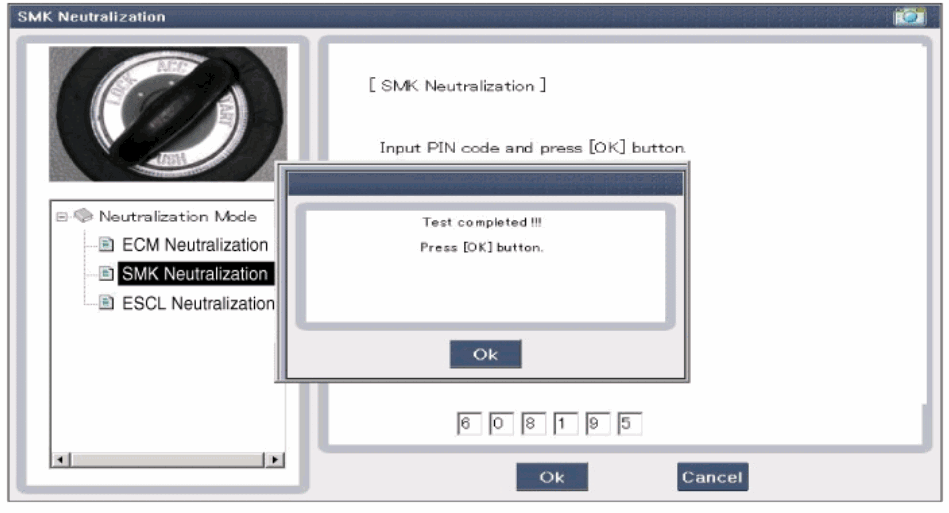

    Fig 7: Display - SMK Neutralization
    G00553294Courtesy of HYUNDAI MOTOR AMERICA
