Circuit Diagram: (A/T)

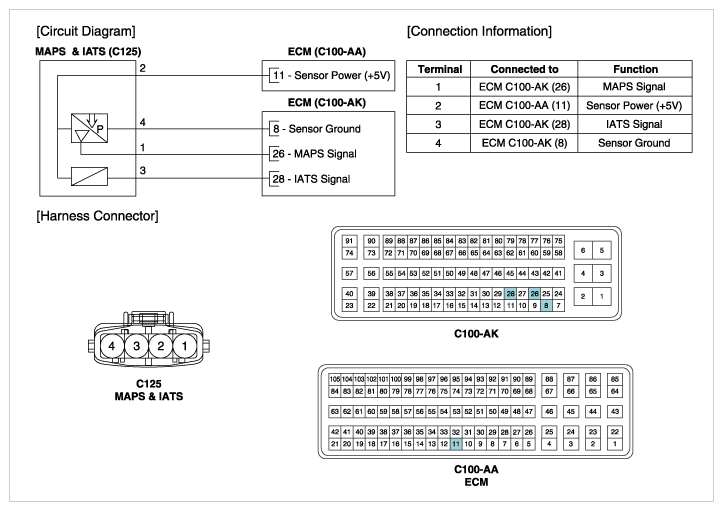

Fig 1: Manifold Absolute Pressure Sensor Circuit Diagram And Connector Terminal Identification (A/T)
G10255701Courtesy of HYUNDAI MOTOR AMERICA
