[Transaxle Components]

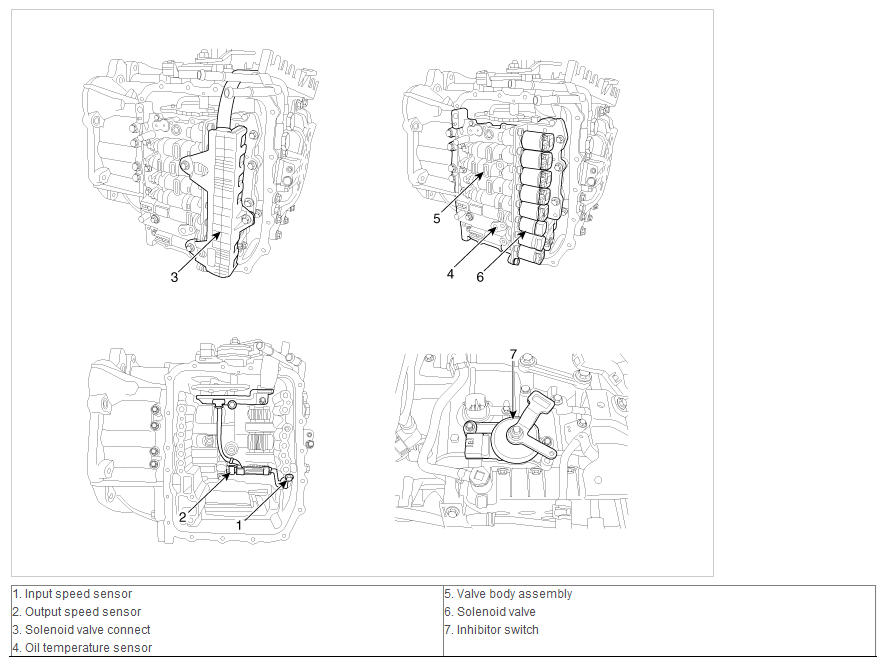

Fig 1: Automatic Transaxle Control System Component Locations (2 Of 2)
G10255933Courtesy of HYUNDAI MOTOR AMERICA
