Circuit Diagram: (M/T)

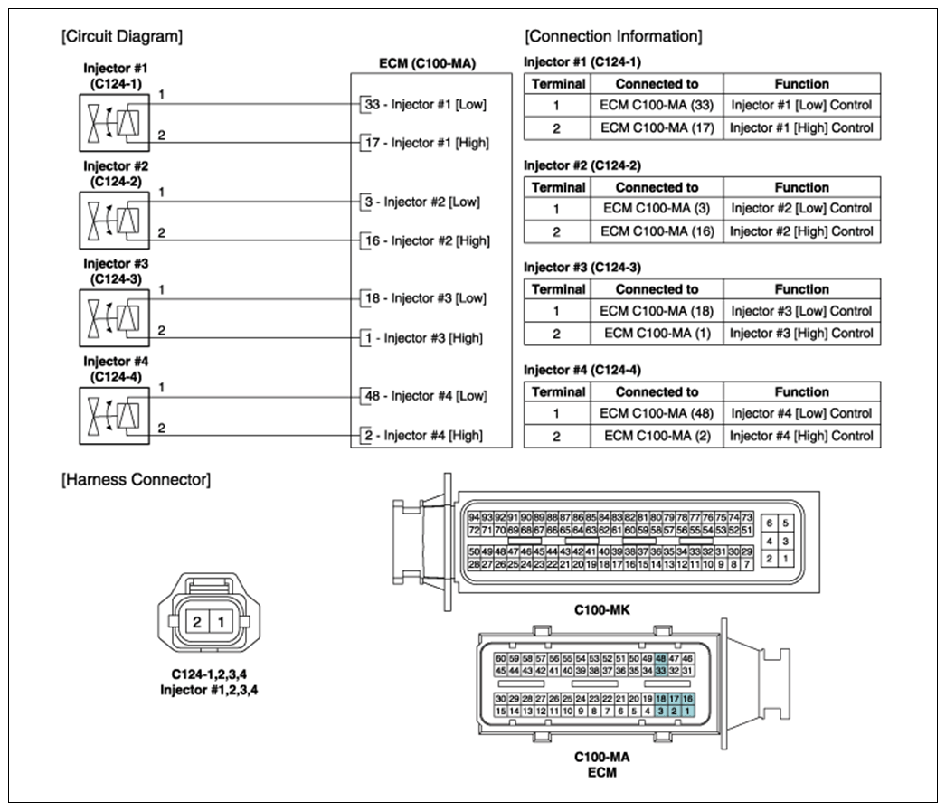

Fig 1: Injector Circuit Diagram And Connector Terminal Identification (M/T)
G10255763Courtesy of HYUNDAI MOTOR AMERICA
