Diagnostic Circuit Diagram

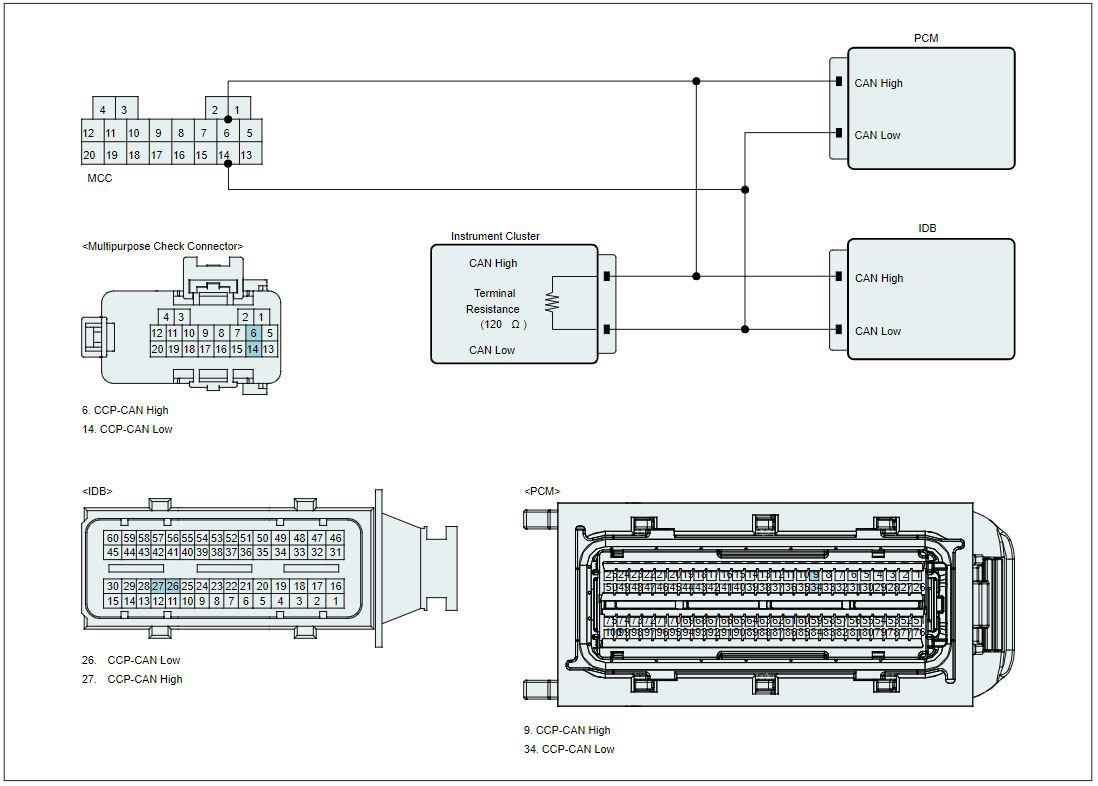

Fig 1: IDB And PCM CAN Communication Diagnostic Circuit Diagram
G08818112Courtesy of HYUNDAI MOTOR AMERICA
