OEM Connector End Views (Smart Junction Box)
>>
Connector End Views
>>
Smart Junction Box Connector End View (I/P-D)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Smart Junction Box Connector End View (I/P-D)

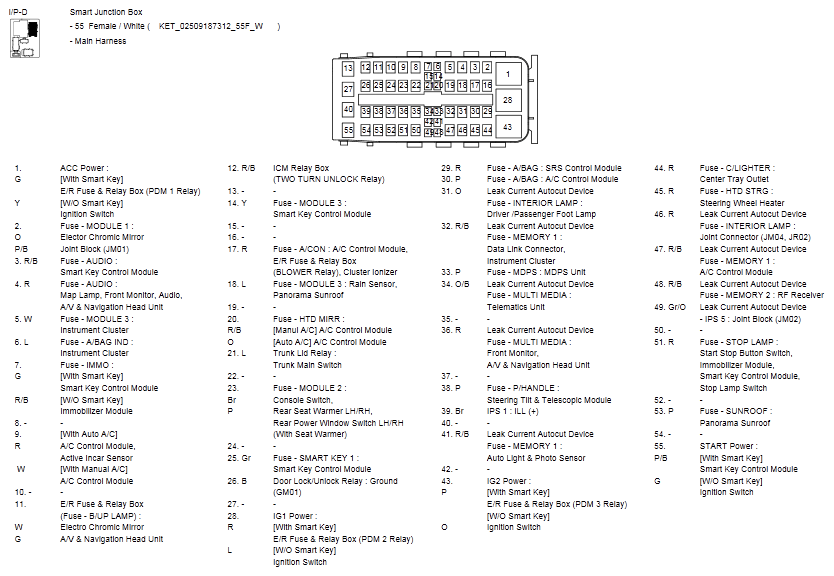

Fig 1: Smart Junction Box Connector End View (I/P-D)
Courtesy of HYUNDAI MOTOR AMERICA
