ESC Module Connector End View (E03)

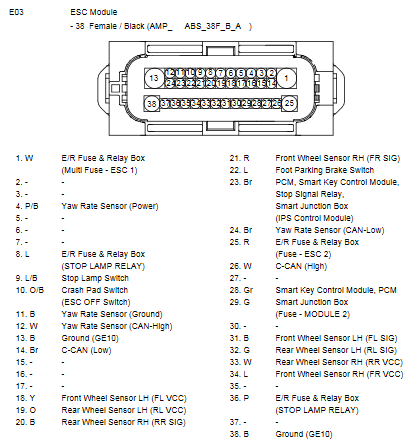

Fig 1: ESC Module Connector End View (E03)

G10775816

Courtesy of HYUNDAI MOTOR AMERICA
