Engine Control System Diagnosis (3 Of 3)
>>
DTC U1112: LIN Communication Error
>>
General Information
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

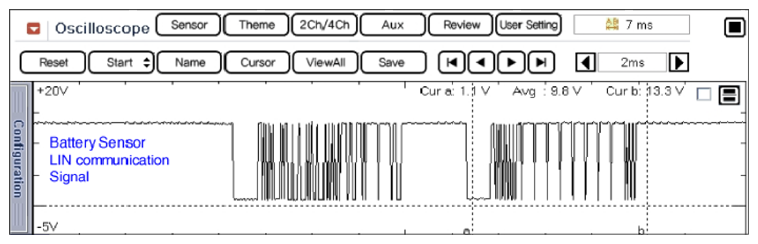

Fig 1: Battery Sensor Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
