Repair Procedures: Installation

  1. Using SST (09231-3C100), install timing chain cover oil seal.

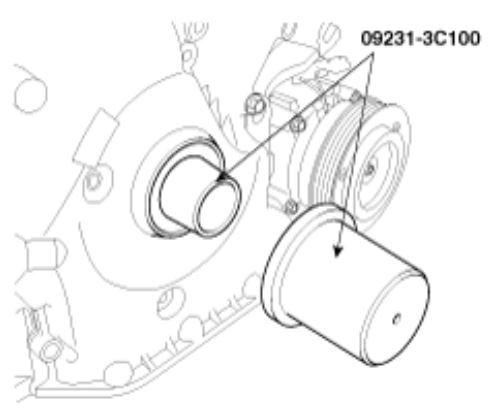

    Fig 1: Installing Timing Chain Cover Oil Seal Using Special Tool
    G08809138Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: Always use new oil seal.
  2. Install the crankshaft damper pulley.

    (Refer to "CRANKSHAFT DAMPER PULLEY ")
