Removal and Installation

  1. Disconnect the battery negative terminal.
  2. To release the tension, turn the drive belt tensioner counterclockwise then remove the drive belt (A).

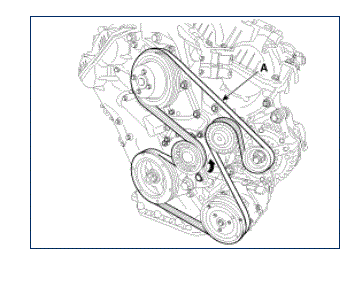

    Fig 1: Engine Drive Belt Routing
    G08809125Courtesy of HYUNDAI MOTOR AMERICA
  3. Installation is reverse order of removal
