Components and Components Location: Components

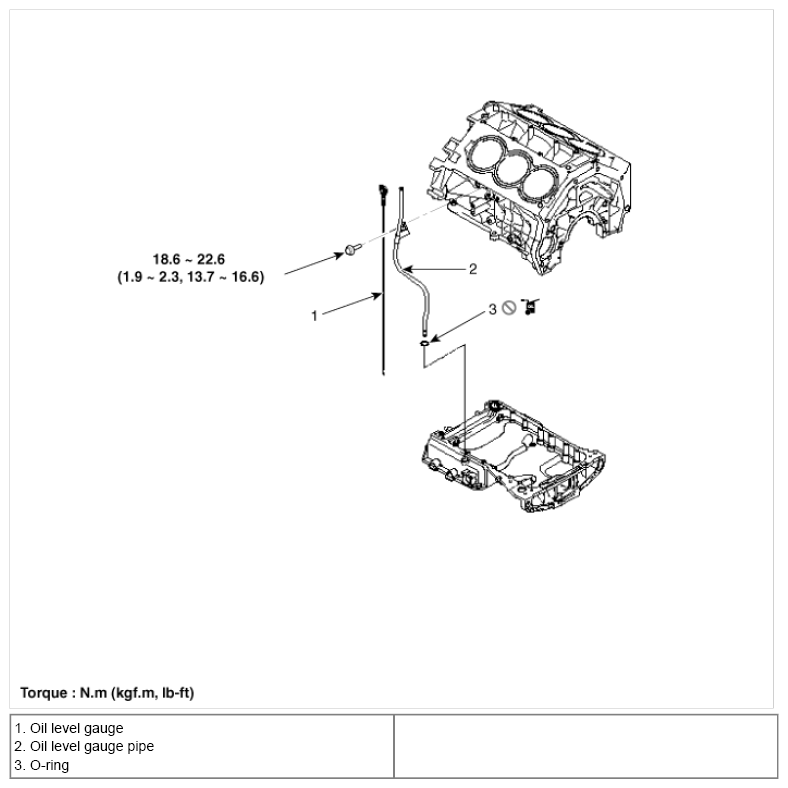

Fig 1: Oil Level Gauge, Pipe And O-Ring With Torque Specifications
G08809397Courtesy of HYUNDAI MOTOR AMERICA
