Components And Components Location: Components

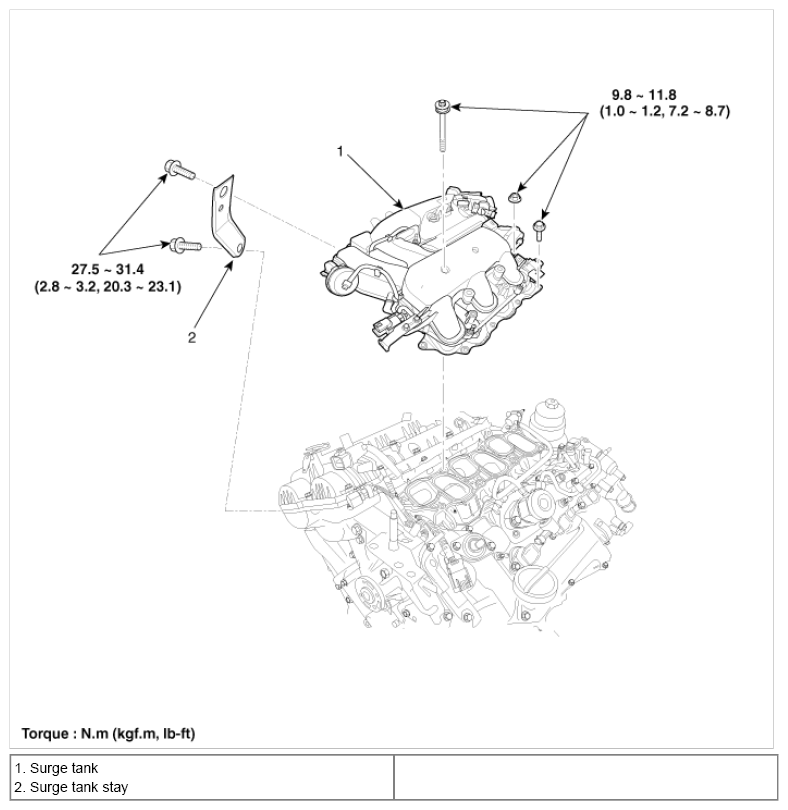

Fig 1: Surge Tank And Stay With Torque Specifications
G08809402Courtesy of HYUNDAI MOTOR AMERICA
