Removal and Installation

  1. Disconnect the battery negative terminal.

    (Refer to "BATTERY ")

  2. Remove the main muffler (A).

    Tightening torque:  39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

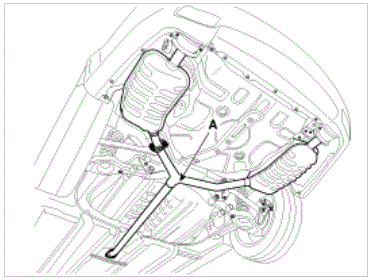

    Fig 1: Identifying Main Muffler
    G08809421Courtesy of HYUNDAI MOTOR AMERICA
  3. Install in the reverse order of removal.
