Emission Control System - General Information
>>
Emission Control System
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagram

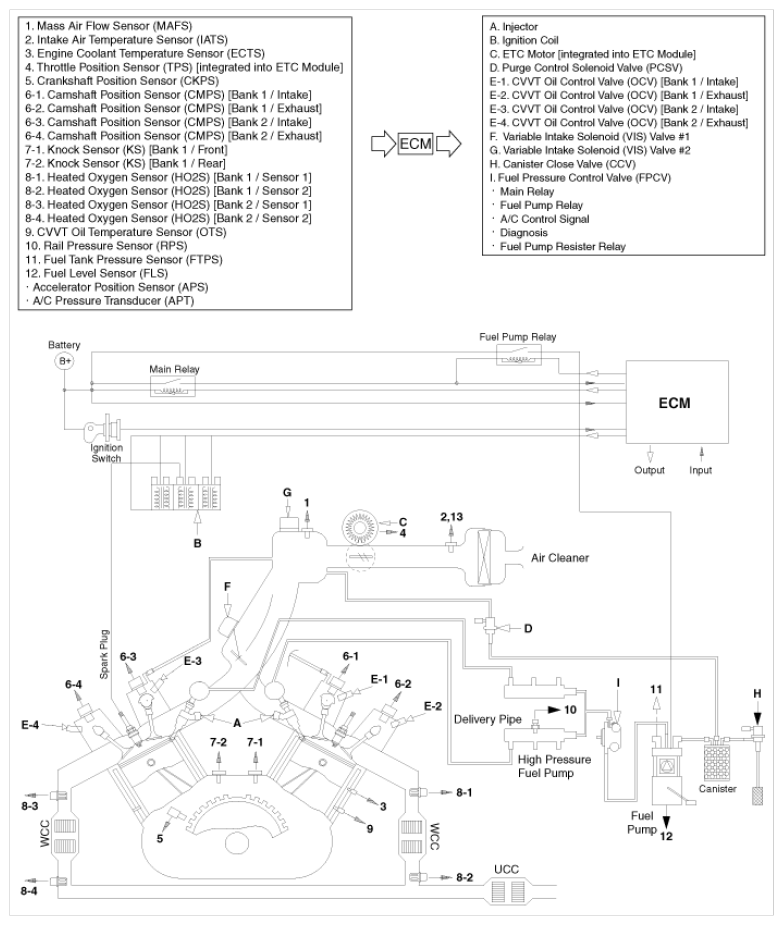

Fig 1: Emission Control System Schematic Diagram
Courtesy of HYUNDAI MOTOR AMERICA
