Removal And Installation

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.
  3. Disconnect the alternator connector (A) and the cable (B) from the 'B' terminal.

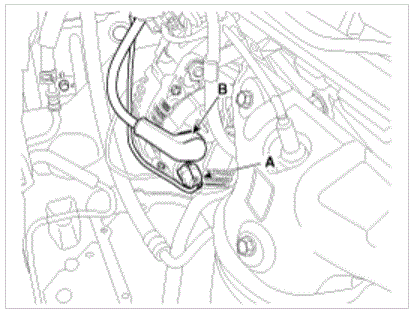

    Fig 1: Identifying Alternator Connector And Cable
    G08809472Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the drive belt.

    (Refer to "DRIVE BELT ")

  5. Remove the alternator (A).

    Tightening torque  : 26.5 - 33.3 N.m (2.7 - 3.4 kgf.m, 19.5 - 24.6 lb-ft)

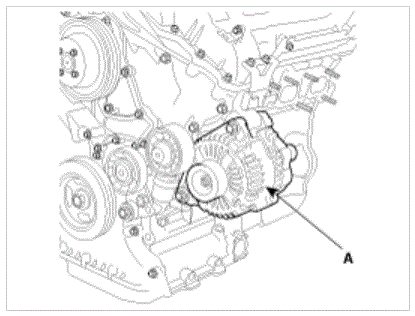

    Fig 2: Identifying Alternator
    G08809473Courtesy of HYUNDAI MOTOR AMERICA
  6. Installation is reverse order of removal.
    NOTE: Do not disassemble the Lambda 3.3L engine alternator. The alternator inner parts will not be supplied. If a fault occurs, inspect charging system first. If necessary, replace the alternator assembly.
