Azera Base
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio/Video/Navigation (AVN) System
>>
AVN Remote Controller
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram

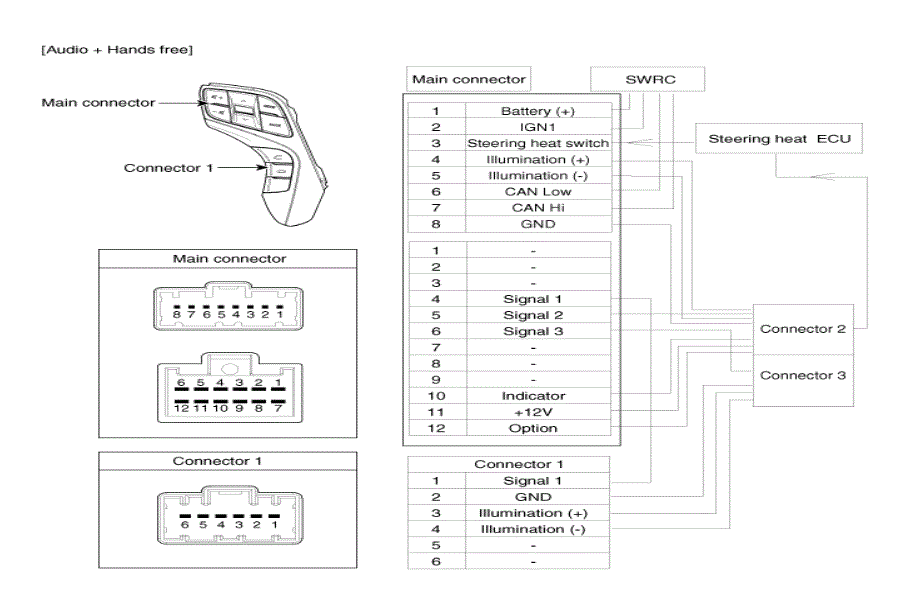

Fig 1: AVN Remote Controller Circuit Diagram (Audio And Hands Free)
Courtesy of HYUNDAI MOTOR AMERICA

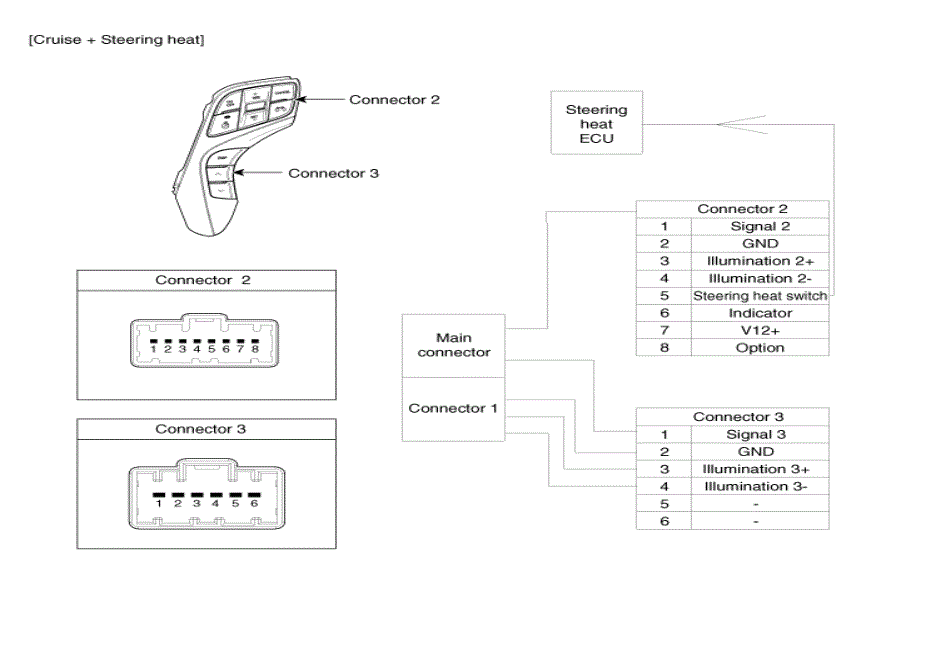

Fig 2: AVN Remote Controller Circuit Diagram (Cruise And Steering Wheel)
Courtesy of HYUNDAI MOTOR AMERICA
