Repair Procedures: Replacement

Remove the front door window glass.
(Refer to "FRONT DOOR WINDOW GLASS ")
Remove the front door outside handle.
(Refer to "FRONT DOOR OUTSIDE HANDLE ")
Loosen the mounting bolt (A).

Fig 1: Identifying Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA

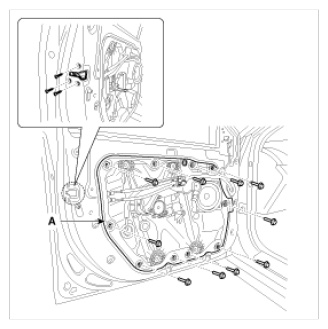

After loosening the front door module mounting bolts, then remove the front door module (A).
Tightening torque:

6.9~10.8 N.m (0.7~1.1 kgf.m, 5.1~8.0 lb-ft)

Fig 2: Identifying Front Door Module With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

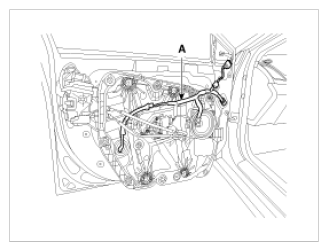

Disconnect the connectors and front door module wiring harness (A).

Fig 3: Identifying Front Door Module Wiring Harness
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- The area of whole parts should be applied with sufficient grease.
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
